GB25AP
Pushbutton Switches DPDT ON-(ON) STRT
廠商型號:
GB25AP
芯天下內部編號:
240-GB25AP
生產廠商:
NKK Switches
描述:
Pushbutton Switches DPDT ON-(ON) STRT
產品類別:
Switches|Pushbutton Switches|GB

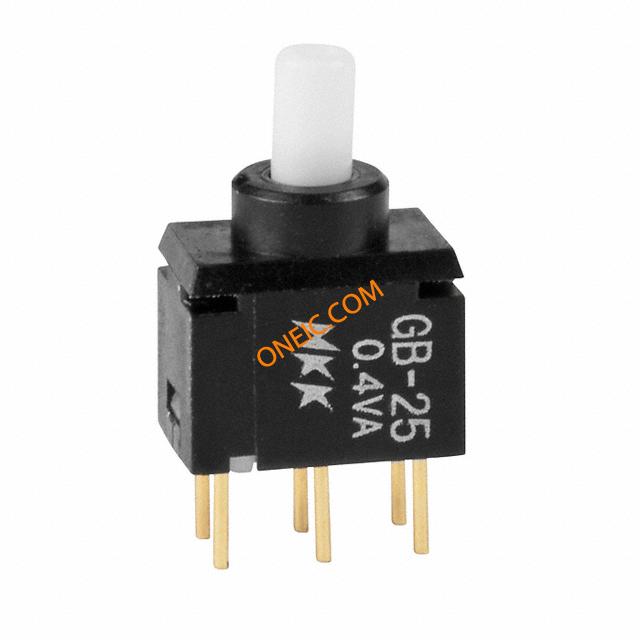

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pole Throw Configuration | DPDT |
| Mounting | Through Hole |
| Maximum Current Rating | 0.1@28VAC 28VDC |
| Maximum DC Voltage Rating | 28 |
| Function | Momentary Contact |
| EU RoHS | Compliant |
| Maximum Power Rating | 0.4@28VAC 28VDC |
| Contact Plating | Gold |
| Minimum Operating Temperature | -30 |
| Mechanical Life | 50000 |
| Terminal Type | PC Pins |
| Electrical Life | 50000 |
| Product Length | 7 |
| Maximum Operating Temperature | 85 |
| Body Orientation | Straight |
| Switch Configuration | ON (ON) |
| Base/Housing Material | (Glass Fiber/Polyamide)/N/A |
| Product Depth | 4.5 |
| Actuator Style | Round Plunger |
| Maximum AC Voltage Rating | 28 |
| Product Height | 10.3 |
| Actuator Material | Polyacetal |
| Contact Material | Phosphor Bronze |
| Packaging | Tray |
| Switch Function | On-Mom |
| Current Rating | 0.4VA (AC/DC) |
| Mounting Type | Through Hole |
| Voltage Rating - AC | 28V |
| Type | Standard |
| Electrical Life | 50,000 Cycles |
| Termination Style | PC Pin |
| Color - Actuator/Cap | White |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Type | Plunger for Cap |
| Standard Package | 1 |
| Voltage Rating - DC | 28V |
| Mechanical Life | 50,000 Cycles |
| Circuit | DPDT |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating AC | 28 V |
| Product Category | Pushbutton Switches |
| Features | Button/cap ordered separately |
| Terminal Seal | Epoxy |
| Series | GB2 |
| Contact Form | DPDT |
| Voltage Rating DC | 28 V |
| Mounting Style | Through Hole |
| Actuator | Without Cap |
| Power Rating | 0.4 VA |
| Part # Aliases | GB-25AP |
| RoHS | RoHS Compliant |
| BodyStyle | Ultra-Miniature |
| ContactForm | DPDT |
| Current,Rating | 100mA |
| DielectricStrength | 500VAC |
| ElectricalLife | 50000Operations(Min.) |
| Force,Operating | 1N |
| Material,Casing | GlassFiberReinforcedPolyamide(UL94V-0) |
| Material,Contact | PhosphorBronzewithGoldPlating |
| Material,Terminal | BrasswithGoldPlating |
| MechanicalLife | 50000Operations(Min.) |
| MountingHoleSize | 0.024" |
| MountingType | PCB |
| NumberofPoles | 2 |
| NumberofPositions | 2 |
| Operation | On-(On) |
| Resistance,Contact | 80Milliohms(Max.) |
| Resistance,Insulation | 500Megohms(Min.)@500VDC |
| Standards | ULRecognized,CSACertified |
| Temperature,Operating | -25to+70°C |
| Termination | PCBPins |
| Voltage,Rating | 28VDC |
