GB25RF120K
Trans IGBT Module N-CH 1.2KV 40A 24-Pin ECONO2 PIM
廠商型號:
GB25RF120K
芯天下內部編號:
5-GB25RF120K
生產廠商:
vishay / semiconductor
描述:
Trans IGBT Module N-CH 1.2KV 40A 24-Pin ECONO2 PIM
產品類別:
Discrete|IGBT Module
客戶編號:

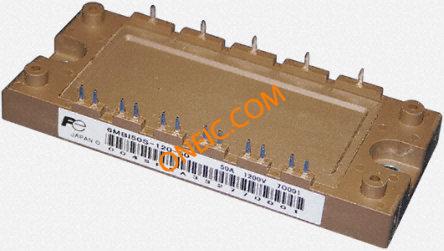

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 24ECONO2 PIM |
| Configuration | Array 7 |
| Pin Count | 24 |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Continuous Collector Current | 40 A |
| Maximum Gate Emitter Voltage | ±20 V |
| Mounting | Screw |
| Standard Package | Bulk |
| Channel Type | N |
| Dimensions | 107.8 x 45.4 x 17mm |
| Height | 17mm |
| Length | 107.8mm |
| Maximum Operating Temperature | +150 °C |
| Mounting Type | Screw |
| Package Type | ECONO2 PIM |
| Width | 45.4mm |
| rohs | Compliant |
| 最大柵極發射極電壓 | ±20V |
| 配置 | 3 相橋接 |
| Board Level Components | Y |
| 最高工作溫度 | +150 °C |
| 安裝類型 | 螺絲安裝 |
| 通道類型 | N |
| 高度 | 17mm |
| 寬度 | 45.4mm |
| 封裝類型 | ECONO2 |
| 最大集電極-發射極電壓 | 1200 V |
| 引腳數目 | 24 |
| 長度 | 107.8mm |
| 尺寸 | 107.8 x 45.4 x 17mm |
| 最大連續集電極電流 | 40 A |
