H11AA1SR2M
Optocoupler AC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD White T/R
-angle.jpg)
廠商型號:
H11AA1SR2M
芯天下內部編號:
3-H11AA1SR2M
生產廠商:
fairchild semiconductor
描述:
Optocoupler AC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD White T/R
產品類別:
Optoelectronics|OptoCouplers|Transistor and Photovoltaic Output PhotoCouplers

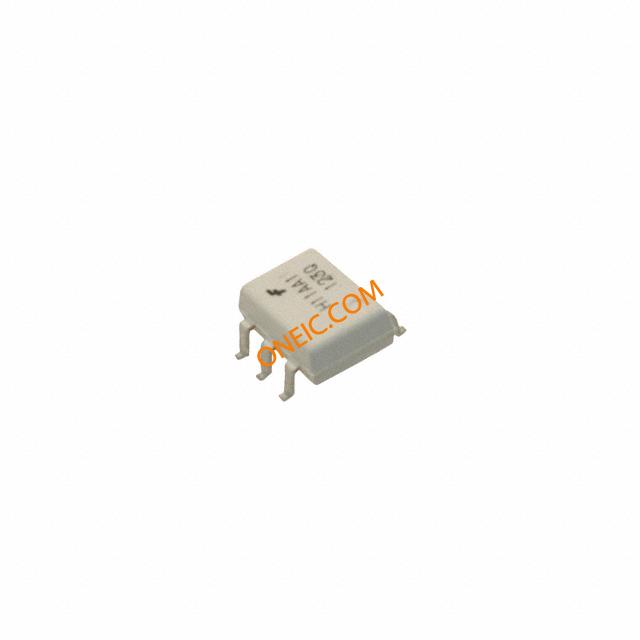

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 6PDIP SMD White |
| Input Type | AC |
| Output Type | DC |
| Number of Channels per Chip | 1 |
| Typical Forward Voltage | 1.17 V |
| Maximum Collector Current | 50 mA |
| Maximum Collector Emitter Voltage | 30 V |
| Maximum Forward Voltage | 1.5 V |
| Minimum Isolation Voltage | 5250 Vrms |
| Maximum Collector Emitter Saturation Voltage | 400 mV |
| Maximum Input Current | 60 mA |
| Maximum Power Dissipation | 250 mW |
| Operating Temperature | -40 to 100 °C |
| Standard Package | Tape & Reel |
| Product Category | Transistor Output Optocouplers |
| RoHS | RoHS Compliant |
| Isolation Voltage | 7500 Vrms |
| Maximum Forward Diode Voltage | 1.5 V |
| Maximum Input Diode Current | 60 mA |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 40 C |
| Package / Case | PDIP-6 Gull Wing |
| Series | H11AA1 |
| Packaging | Reel |
| Output Device | NPN Phototransistor |
| Factory Pack Quantity | 1000 |
| Package Width | 6.1 |
| Mounting | Surface Mount |
| Minimum Isolation Voltage | 5250 |
| PCB | 6 |
| Maximum Power Dissipation | 250 |
| Maximum Collector Emitter Saturation Voltage | 400 |
| EU RoHS | Compliant |
| Maximum Input Current | 60 |
| Pin Count | 6 |
| Minimum Operating Temperature | -40 |
| Supplier Package | PDIP SMD White |
| Standard Package Name | PDIP SMD |
| Maximum Operating Temperature | 100 |
| Maximum Forward Voltage | 1.5 |
| Package Length | 8.13 |
| Maximum Collector Emitter Voltage | 30 |
| Package Height | 3.28 |
| Maximum Collector Current | 50 |
| Lead Shape | Gull-wing |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Min) | 20% @ ±10mA |
| Mounting Type | Surface Mount |
| Vce Saturation (Max) | 400mV |
| Voltage - Output | 30V |
| Number of Channels | 1 |
| Current - DC Forward (If) | 60mA |
| Voltage - Isolation | 7500Vpk |
| Package/Case | 6-SMD |
| rohs | Lead free / RoHS Compliant |
| Other Names | H11AA1SR2MCT |
| Unit Weight | 0.028572 oz |
| Collector Current (DC) | 0.05 A |
| Collector-Emitter Voltage | 30 V |
| Collector-Emitter Saturation Voltage | 0.4 V |
| Power Dissipation | 0.25 W |
| Operating Temp Range | -40C to 100C |
| Package Type | PDIP SMD White |
| Number of Elements | 1 |
| Operating Temperature Classification | Industrial |
| Forward Voltage | 1.5 V |
| Forward Current | 60 mA |
| Rad Hardened | No |
| No. of Channels | :1 |
| Optocoupler Output Type | :Phototransistor |
| Input Current | :60mA |
| Output Voltage | :100V |
| Opto Case Style | :SMD |
| No. of Pins | :6 |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 0.005 |
| Tariff No. | 85414010 |
