HLMP-Q150-F0011
LED Uni-Color Red 645nm 2-Pin T/R
廠商型號:
HLMP-Q150-F0011
芯天下內部編號:
9-HLMP-Q150-F0011
生產廠商:
avago technologies
描述:
LED Uni-Color Red 645nm 2-Pin T/R
產品類別:
Lighting|LEDs

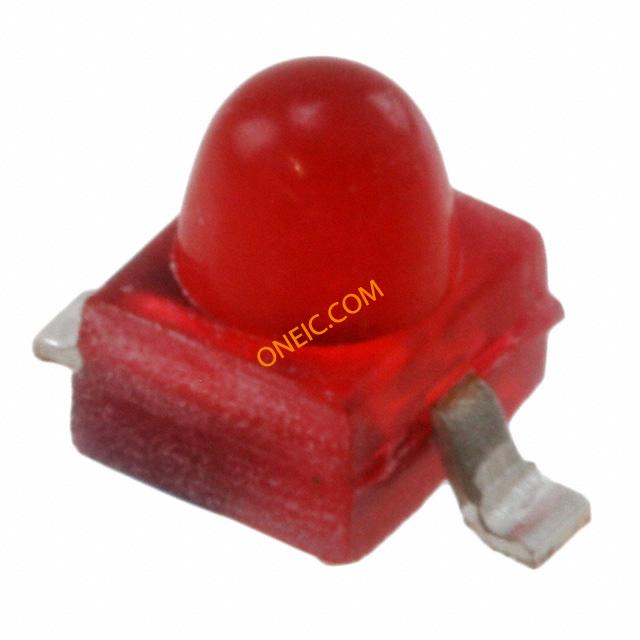

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pin Count | 2 |
| Type | Uni-Color |
| Number of LEDs | 1 |
| Intensity | 1.8 mcd |
| Dominant Wavelength/Color Temperature | 637 nm |
| Peak Wavelength | 645 nm |
| Color | Red |
| Lens Appearance | Colored Diffused |
| Lens Shape Type | Circular |
| Viewing Angle | 90 ° |
| Mounting Orientation | Top Mount |
| Mounting | Surface Mount |
| Standard Package | Tape & Reel |
| Product Category | Standard LEDs - SMD |
| RoHS | RoHS Compliant |
| LED Size | 2.34 mm x 2.21 mm x 2.92 mm |
| Illumination Color | Red |
| Wavelength/Color Temperature | 637 nm |
| Lens Color/Style | Tinted Diffused |
| Forward Current | 20 mA |
| Forward Voltage | 1.6 V |
| Luminous Intensity | 1.8 mcd |
| Packaging | Reel |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 40 C |
| Factory Pack Quantity | 1500 |
| Dominant Wavelength | 637 |
| Package Width | 2.21(Max) |
| PCB | 2 |
| Maximum Forward Current | 30 |
| Viewing Angle | 90 |
| Reverse Voltage | 5 |
| EU RoHS | Compliant |
| Maximum Forward Voltage per Color | 1.8 |
| Peak Wavelength | 645 |
| Minimum Operating Temperature | -40 |
| LED Material | GaAlAs |
| Lens Dimensions | 1.91x1.91x1.4 |
| Maximum Operating Temperature | 100 |
| Package Length | 2.34(Max) |
| Package Height | 2.92(Max) |
| High Brightness | No |
| Lead Shape | Flat |
| Voltage - Forward (Vf) Typ | 1.6V |
| Mounting Type | Surface Mount |
| Lens Style/Size | Round with Domed Top, 1.9mm, T- 3/4 |
| Wavelength - Dominant | 637nm |
| Size / Dimension | 2.08mm L x 2.21mm W |
| Millicandela Rating | 1.8mcd |
| Wavelength - Peak | 645nm |
| Current - Test | 1mA |
| Height | 2.92mm |
| Lens Type | Diffused, Tinted |
| Package/Case | 2-SMD, Gull Wing |
| rohs | Lead free / RoHS Compliant |
| Other Names | 516-2462-1 |
| Emitting Color | Red |
| Lum Intensity | 1.8mcd |
| Operating Temp Range | -40C to 100C |
| Package Type | Flat Top |
| Shape Type | Circular |
| Number of Elements | 1 |
| Operating Temperature Classification | Industrial |
| Reverse Voltage | 5 V |
| Lens Dimensions | 1.91x1.91x1.4 mm |
| Dominant Wave Length | 637 nm |
| Test Current (It) | 10 mA |
| Chip Material | GaAlAs |
| Main Category | Chip LED |
| Rad Hardened | No |
| Product Depth (mm) | 2.21 mm |
| Product Height (mm) | 2.92 mm |
| Product Length (mm) | 2.34 mm |
| DELETED | Compliant |
| Bulb Size | :1.9mm |
| LED Colour | :Red |
| Forward Current If | :30mA |
| LED Mounting | :SMD |
| Lens Shape | :Round |
| Wavelength Typ | :637nm |
| MSL | :MSL 2A - 4 weeks |
| SVHC | :No SVHC (20-Jun-2013) |
| Dominant Wavelength | :637nm |
| Dominant Wavelength Typ | :637nm |
| Forward Current If Max | :30mA |
| Forward Voltage VF Max | :1.6V |
| LED / Lamp Size | :1.65mm |
| LED Type | :Standard |
| Luminous Intensity Typ | :1.8mcd |
| No. of Pins | :2 |
| Operating Temperature Max | :100°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Range | :-40°C to +100°C |
| Opto Case Style | :SMD |
| Peak Forward Current | :300mA |
| Reverse Protection Voltage | :5V |
| Weight (kg) | 0.000016 |
| Tariff No. | 85414010 |
