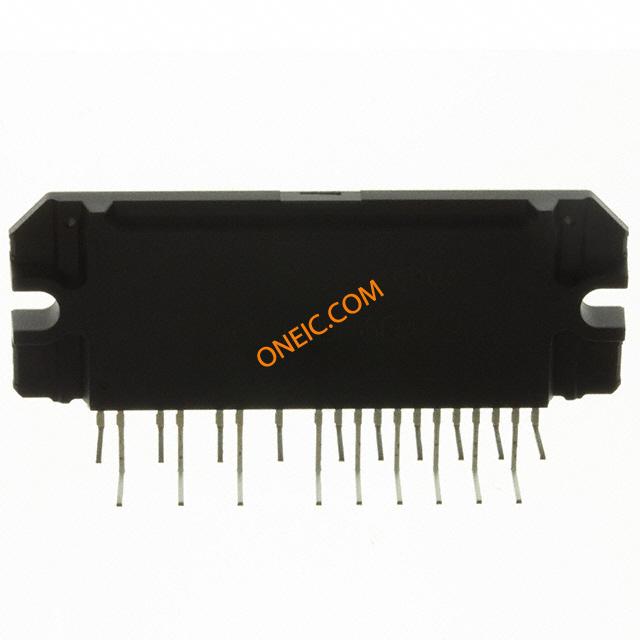

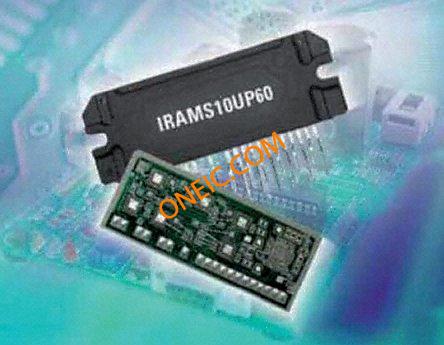

IRAMS10UP60A-2
Motor Driver 23-Pin SIP-1
廠商型號:
IRAMS10UP60A-2
芯天下內部編號:
176-IRAMS10UP60A-2
生產廠商:
international rectifier
描述:
Motor Driver 23-Pin SIP-1
產品類別:
Power Management|Motion Motor Control
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 23SIP-1 |
| Type | Motor Driver |
| Operating Temperature | -40 to 125 °C |
| Mounting | Through Hole |
| Standard Package | Rail / Tube |
| Supplier Package | SIP-1 |
| Standard Package Name | SIP-1 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Maximum Operating Supply Voltage | 20 |
| Minimum Operating Temperature | -40 |
| Minimum Operating Supply Voltage | 12 |
| Pin Count | 23 |
| Voltage - Isolation | 2000Vrms |
| Package / Case | PCB Module |
| Current | 10A |
| Voltage | 600V |
| Configuration | 3 Phase |
| Other Names | IRAMS10UP60A2 |
| rohs | Lead free / RoHS Compliant |
| Application | Motor Driver |
| Dimensions | 62 x 5 x 22.3mm |
| Height | 22.3mm |
| Length | 62mm |
| Maximum Operating Supply Voltage | 20 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 12 V |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | SIP1 |
| Width | 5mm |
| Operating Supply Voltage | 7 V |
| Mounting Style | Through Hole |
| Product | Fan / Motor Controllers / Drivers |
| Factory Pack Quantity | 80 |
| Supply Current | 120 uA |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Frequency | 20KHz |
| Number of outputs | 3 |
| Output current | 10A |
| Multiplicity | 1 |
| Integrated circuit type | driver |
| Gross weight | 0.02 kg |
| Operating temperature | -40...150°C |
| Output voltage | 450V |
| Supply voltage | 12...20V DC |
| Technology | MOSFET |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| IRAMS10UP60A | international rectifier | Motor Driver 23-Pin SIP-1 | 查看詳情 |
| IRAMS10UP60B | international rectifier | Motor Driver 23-Pin SIP-1 | 查看詳情 |
| IRAMS10UP60B-2 | international rectifier | Motor Driver 23-Pin SIP-1 | 查看詳情 |
| IRAMS10UP60B-3 | International Rectifier | Motor / Motion / Ignition Controllers & Drivers PLUG N DRIVE MOD iMOTION 10A, 600V | 查看詳情 |
| IRAMS10UP60B-4 | International Rectifier | Motor / Motion / Ignition Controllers & Drivers PLUG N DRIVE MOD iMOTION 10A, 600V | 查看詳情 |
| IRAMS06UP60A | international rectifier | Motor Controller 23-Pin SIP-1 | 查看詳情 |
| IRAMS06UP60A-2 | international rectifier | Motor Controller 23-Pin SIP-1 | 查看詳情 |
| IRAMS06UP60B | international rectifier | Motor Driver 23-Pin SIP-1 | 查看詳情 |
| IRAMS06UP60B-2 | international rectifier | Motor Driver 19-Pin SIP-1 | 查看詳情 |
| IRAMS12UP60A | International Rectifier | Motor / Motion / Ignition Controllers & Drivers 3-Phase Gate DRVR HVIC 600V 200mA | 查看詳情 |
