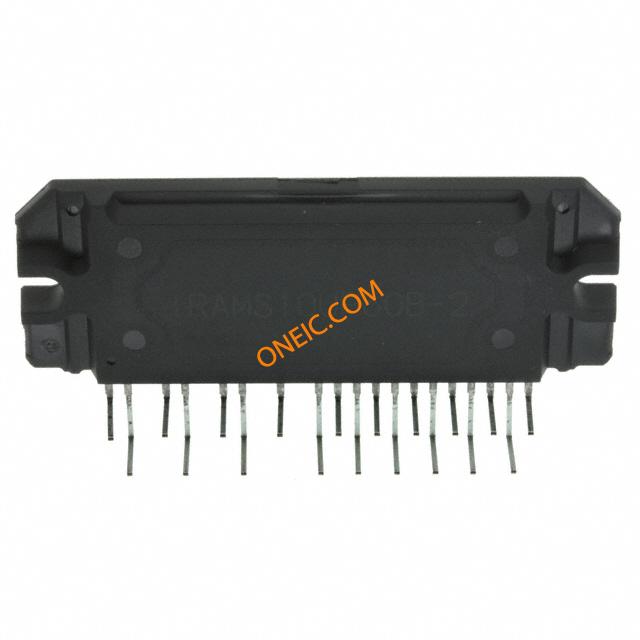

IRAMS10UP60B-2
Motor Driver 23-Pin SIP-1
廠商型號:
IRAMS10UP60B-2
芯天下內部編號:
176-IRAMS10UP60B-2
生產廠商:
international rectifier
描述:
Motor Driver 23-Pin SIP-1
產品類別:
Power Management|Motion Motor Control
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 23SIP-1 |
| Type | Motor Driver |
| Operating Temperature | -40 to 125 °C |
| Mounting | Through Hole |
| Standard Package | Rail / Tube |
| RoHS | RoHS Compliant |
| Operating Supply Voltage | 5 V |
| Supply Current | 165 uA |
| Mounting Style | Through Hole |
| Package / Case | SIP-23 |
| Packaging | Tube |
| Life | New At Mouser |
| Voltage - Isolation | 2000Vrms |
| Current | 10A |
| Voltage | 600V |
| Configuration | 3 Phase |
| rohs | Lead free / RoHS Compliant |
| Application | Motor Driver |
| Dimensions | 62 x 5 x 22.3mm |
| Height | 22.3mm |
| Length | 62mm |
| Maximum Operating Supply Voltage | 20 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 12 V |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | SIP1 |
| Pin Count | 23 |
| Width | 5mm |
| Factory Pack Quantity | 80 |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Automotive |
| Rad Hardened | No |
| Operating Supply Voltage (Min) | 12 V |
| Operating Supply Voltage (Max) | 20 V |
| Motor Controller Type | Motor Driver |
| IPM Power Device | :IGBT |
| Voltage Rating (Vces / Vdss) | :600V |
| Current Rating (Ic / Id) | :10A |
| Isolation Voltage | :2000Vrms |
| IPM Mounting Type | :PCB |
| IPM Case Style | :SIP 1 |
| IPM Series | :Plug n Drive IPM |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :10 |
| Frequency | :20kHz |
| IC Generic Number | :10UP60 |
| Input Voltage Max | :450V |
| No. of Outputs | :3 |
| No. of Pins | :23 |
| Operating Temperature Max | :150°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Range | :-40°C to +150°C |
| Output Current | :10A |
| Output Current Max | :10A |
| Output Voltage | :600V |
| Output Voltage Max | :600V |
| Primary Input Voltage | :450V |
| Supply Voltage Max | :15V |
| Supply Voltage Min | :12V |
| Voltage Regulator Case Style | :SIP |
| Weight (kg) | 0.000175 |
| Tariff No. | 85423990 |
| Output current | 10A |
| Integrated circuit type | driver |
| Gross weight | 0.02 kg |
| Output voltage | 600V |
| Multiplicity | 1 |
| Kind of integrated circuit | PWM controller |
| Collective package [pcs] | 5 |
| spg | 5 |
