KHAU-17D11-110
General Purpose Relays 4PDT 110 VDC 3A
廠商型號:
KHAU-17D11-110
芯天下內部編號:
35-KHAU-17D11-110
生產廠商:
TE Connectivity / P&B
描述:
General Purpose Relays 4PDT 110 VDC 3A
產品類別:
Electromechanical|Relays|General Purpose Relays

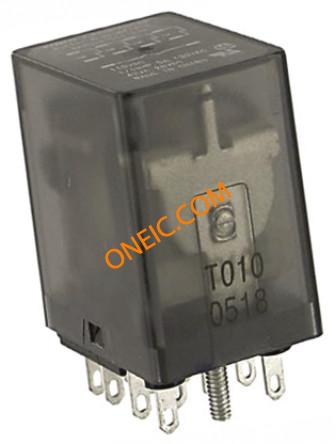

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | General Purpose Relays |
| RoHS | No |
| Contact Form | 4 Form C (4PDT-BM) |
| Coil Voltage | 110 V |
| Coil Resistance | 11000 Ohms |
| Mounting Style | Socket |
| Contact Material | Silver |
| Coil Type | Monostable |
| Contact Termination | Plug |
| Height | 34.9 mm |
| Length | 28.2 mm |
| Packaging | Tray |
| Power Consumption | 0.9 W |
| Series | KHA |
| Factory Pack Quantity | 25 |
| Type | Ice Cube Style Relay |
| Width | 21.8 mm |
| Part # Aliases | 4-1393122-2 |
| Industry Aliases | 4-1393122-2, KHAU-17D11-110 |
| Subcategory | Electromechanical Relay |
| Lead Time | 94 Days |
| Coil Current | 8.2mA |
| Turn On Voltage (Max) | 82.5 VDC |
| Features | Insulation - Class B |
| Coil Power | 1.1 W |
| Relay Type | General Purpose |
| Termination Style | Plug In |
| Switching Voltage | 240VAC - Max |
| Release Time | 6ms |
| Operating Temperature | -45°C ~ 70°C |
| Operate Time | 13ms |
| Contact Rating (Current) | 3A |
| Standard Package | 25 |
| Mounting Type | Socketable |
| rohs | Lead free / RoHS Compliant |
| Application | General Purpose |
| Contact Configuration | 4PDT |
| Depth | 0.859in |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -45°C |
| Terminal Type | Solder |
| Contact Current Rating | 2.5 A |
| Brand/Series | KHASeries |
| ContactForm | 4PDT |
| CurrentRating | 3A |
| Current,Rating | 3A |
| Dimensions | 1.109in.(Max.)Lx0.859in.(Max.)Wx1.281in.(Max.)H |
| Function | GeneralPurpose |
| Material,Contact | Silver |
| MountingType | Socket |
| NumberofPins | 14 |
| RelayType | ElectroMechanical |
| Resistance,Coil | 11000Ohms |
| Standards | UL,CSA,RoHS |
| Temperature,Operating,Maximum | 70°C |
| Temperature,Operating,Minimum | -45°C |
| Termination | Solder |
| TycoPartNumber | 4-1393122-2 |
| Voltage,Control | 110VDC |
| Voltage,Rating | 240VAC |
| 環境溫度類?(°C) | 50 – 70 |
| 高度 | 32.5?mm?[?1.261?in?] |
| 端子類型 | 插入式, 焊接 |
| 端子極限短時電流?(A) | 2.5 |
| 線圈功率額定值類?(mW) | 1000 – 1500 |
| 封裝方法 | Tray |
| 線圈特性 | UL 線圈絕緣類 B |
| 端子極限連續電流?(A) | 2.5 |
| 寬度類（機械）?(mm) | 20 – 25 |
| 線圈電壓額定值?(VDC) | 110 |
| 長度 | 28.2?mm?[?1.111?in?] |
| 端子排列方式 | 4 Form C (CO) |
| 打開端子間絕緣初始電介質?(Vrms) | 1000 |
| 長度類（機械）?(mm) | 25 – 30 |
| 線圈/端子間絕緣初始電介質類?(V) | 1000 – 1500 |
| 環境溫度（最大值） | 70?°C?[?158?°F?] |
| 繼電器安裝類型 | 插座 |
| Contact Current Rating (Max)?(A) | 2.5 |
| 端子極限關合電流?(A) | 2.5 |
| 驅動系統 | DC |
| 相鄰端子間絕緣初始電介質?(Vrms) | 1500 |
| 端子開關負載（最小值） | 100mA @ 12V |
| 環境保護類別 | RTI |
| 端子材料 | Ag |
| 高度類（機械）?(mm) | 30 – 40 |
| 端子和線圈間絕緣初始電介質?(V) | 1500 |
| 寬度 | 21.8?mm?[?.858?in?] |
| 絕緣初始電阻?(MΩ) | 100 |
| 線圈勵磁系統 | 單穩態、直流 |
| 端子極限斷開電流?(A) | 2.5 |
| 端子和線圈間絕緣初始電介質?(Vrms) | 1500 |
| 端子電流類?(A) | 2 – 5, 16 |
| 線圈功率額定值（直流）?(mW) | 1100 |
| 重量 | 45?g?[?1.587?oz?] |
| 端子電壓額定值?(VAC) | 240 |
| 線圈電阻?(Ω) | 11000 |
| 端子極數 | 4 |
| 工組溫度范圍?(°C) | -45 – 70 |
| 功率繼電器類型 | 工業面板插拔式 |
