KHAU-17D11-6
Electromechanical Relay 4PDT 5A 6VDC 40Ohm Socket
廠商型號:
KHAU-17D11-6
芯天下內部編號:
35-KHAU-17D11-6
生產廠商:
te connectivity / p&b
描述:
Electromechanical Relay 4PDT 5A 6VDC 40Ohm Socket
產品類別:
Switches and Relays|Relays|Electromechanical Relay

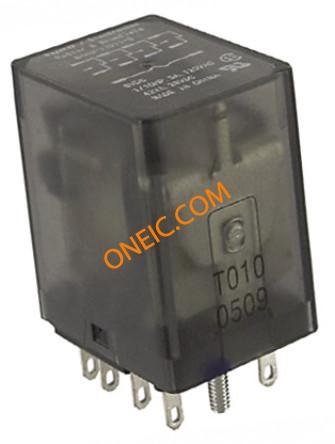

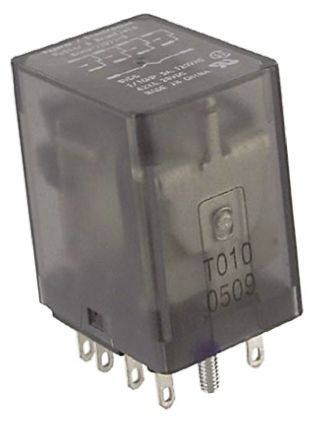

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | General Purpose Relay |
| Contact Arrangement | 4PDT |
| Maximum Current Rating | 5 A |
| DC Coil Voltage | 6 V |
| Mounting | Socket |
| Coil Current | 150 mA |
| Coil Resistance | 40 Ohm |
| Contact Material | Silver |
| Maximum AC Voltage Rating | 120 V |
| Maximum DC Voltage Rating | 28 V |
| Operating Temperature | -45 to 70 °C |
| Standard Package | Trays |
| Product Category | General Purpose Relays |
| RoHS | RoHS Compliant |
| Contact Form | 4 Form C (4PDT-BM) |
| Coil Voltage | 6 VDC |
| Mounting Style | Socket |
| Coil Type | Monostable |
| Contact Termination | Tabs |
| Height | 34.9 mm |
| Length | 28.2 mm |
| Packaging | Tray |
| Power Consumption | 0.9 W |
| Series | KHA |
| Factory Pack Quantity | 25 |
| Width | 21.8 mm |
| Part # Aliases | 4-1393122-7 |
| Industry Aliases | 4-1393122-7, KHAU-17D11-6 |
| Subcategory | Electromechanical Relay |
| Lead Time | 94 Days |
| Turn On Voltage (Max) | 4.5 VDC |
| Features | Insulation - Class B |
| Coil Power | 900 mW |
| Relay Type | General Purpose |
| Termination Style | Plug In |
| Switching Voltage | 240VAC - Max |
| Release Time | 6ms |
| Operate Time | 13ms |
| Contact Rating (Current) | 3A |
| Mounting Type | Socketable |
| rohs | Lead free / RoHS Compliant |
| Application | General Purpose |
| Contact Configuration | 4PDT |
| Depth | 0.858in |
| Terminal Type | Solder |
| Contact Current Rating | 2.5 A |
| Product Range | :TE - KHA Series |
| Contact Current | :5A |
| Contact Voltage VAC | :240V |
| Relay Mounting | :Socket |
| Carry Current | :3A |
| Weight (kg) | 0.027 |
| Tariff No. | 85364110 |
| Brand/Series | KHASeries |
| ContactForm | 4PDT |
| CurrentRating | 3A |
| Current,Rating | 3A |
| Dimensions | 1.111in.Lx0.858in.Wx1.375in.H |
| Function | GeneralPurpose |
| Material,Contact | Silver |
| MountingType | Socket |
| NumberofPins | 14 |
| RelayType | ElectroMechanical |
| Resistance,Coil | 40Ohms |
| Standards | UL,CSA,RoHS |
| Termination | Solder |
| TycoPartNumber | 4-1393122-7 |
| Voltage,Control | 6VDC |
| Voltage,Rating | 240VAC |
