LTL912SEKSA
Standard LEDs - Through Hole Red Clear 628nm
廠商型號:
LTL912SEKSA
芯天下內部編號:
203-LTL912SEKSA
生產廠商:
Lite-On
描述:
Standard LEDs - Through Hole Red Clear 628nm
產品類別:
Optoelectronics|LED Indication|Standard LEDs - Through Hole
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Red |
| Luminous Intensity | 0.9 mcd |
| Wavelength/Color Temperature | 638 nm |
| Viewing Angle | 60 deg |
| Lens Color/Style | Water Clear |
| LED Size | 1.9 mm |
| Packaging | Tube |
| Lens Shape | Dome |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 65 |
| Life | Obsolete |
| Dominant Wavelength | 628 |
| Maximum Forward Current | 70 |
| Maximum Power Dissipation | 242 |
| Type | Uni-Color |
| Viewing Angle | 60 |
| Reverse Voltage | 20(Typ) |
| EU RoHS | Compliant |
| Lens Appearance | Colorless Non Diffused |
| Maximum Forward Voltage per Color | 3.45 |
| Peak Wavelength | 638 |
| Minimum Operating Temperature | -40 |
| Lens Shape Type | Circular |
| Lens Dimensions | 3x3x1.9 |
| Mounting Orientation | Top Mount |
| Maximum Operating Temperature | 100 |
| Number of LEDs | 1 |
| Pin Count | 4 |
| Color | Red |
| Luminous Flux | 3.75lm |
| LED Material | AlGaInP |
| High Brightness | No |
| Voltage - Forward (Vf) Typ | 2.5V |
| Luminous Flux @ Current - Test | 3.7 lm |
| Mounting Type | Through Hole |

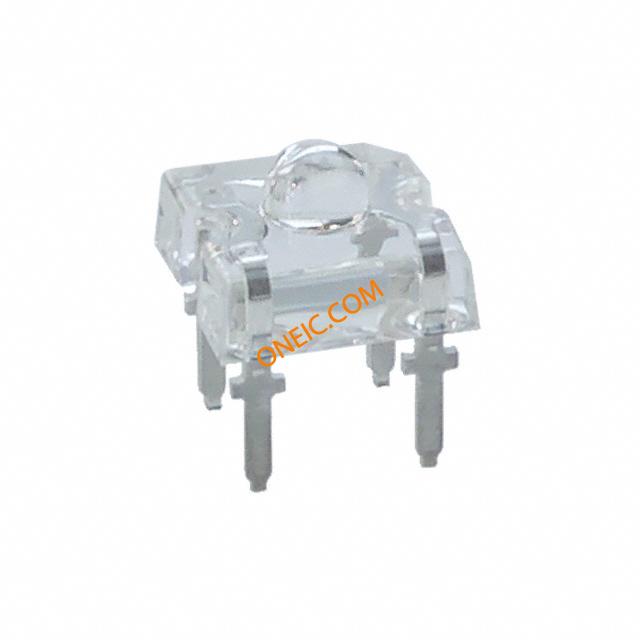

| Lens Style/Size | Square with Domed Top, 7.62mm |
| Lens Type | Clear |
| Wavelength - Dominant | 628nm |

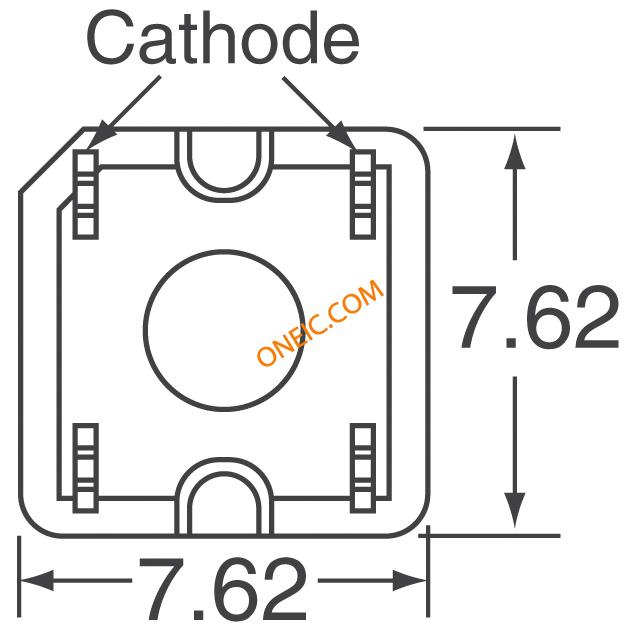

| Size / Dimension | 7.62mm L x 7.62mm W |
| Wavelength - Peak | 638nm |
| Standard Package | 65 |
| Current - Test | 70mA |

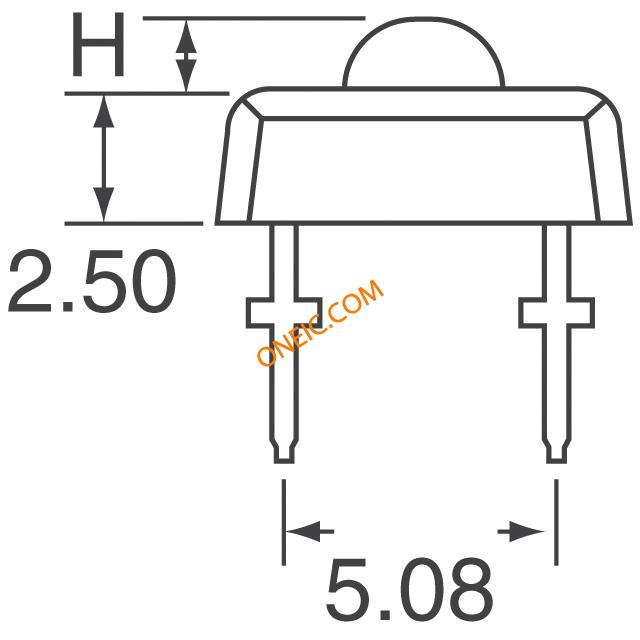

| Height | 4.40mm |
| Other Names | 160-1625 |
| Package/Case | 4-DIP (0.200", 5.08mm) |
| rohs | Lead free / RoHS Compliant |
| 高度 | 4.40mm |
| 視角 | 60° |
| 透鏡類型 | Clear |
| 顏色 | Red |
| 透鏡樣式/尺寸 | Square with Domed Top, 7.62mm |
