LTST-S270CKT
LED Uni-Color Red 660nm 2-Pin T/R
廠商型號:
LTST-S270CKT
芯天下內部編號:
203-LTST-S270CKT
生產廠商:
lite-on
描述:
LED Uni-Color Red 660nm 2-Pin T/R
產品類別:
Lighting|LEDs

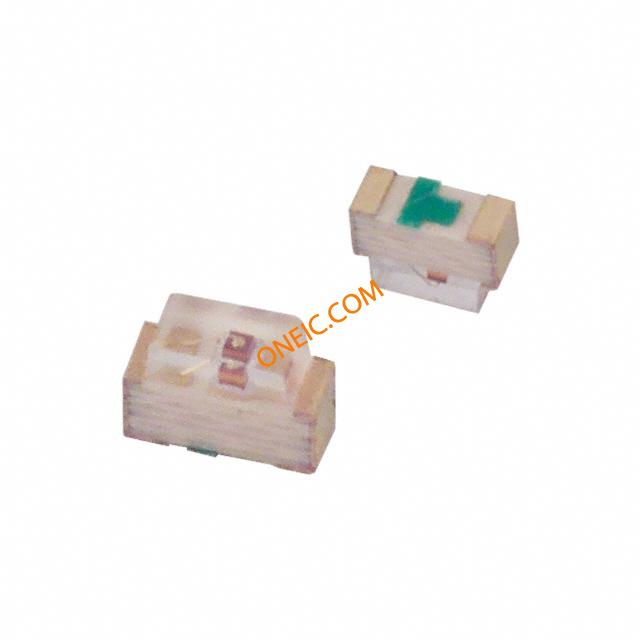

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pin Count | 2 |
| Type | Uni-Color |
| Number of LEDs | 1 |
| Intensity | 16 mcd |
| Dominant Wavelength/Color Temperature | 638 nm |
| Peak Wavelength | 660 nm |
| Color | Red |
| Lens Appearance | Colorless Non Diffused |
| Lens Shape Type | Rectangular |
| Viewing Angle | 130 ° |
| Mounting Orientation | Right Angle |
| Mounting | Surface Mount |
| Standard Package | Tape & Reel |
| Product Category | Standard LEDs - SMD |
| RoHS | RoHS Compliant |
| Package / Case | 0603 |
| LED Size | 1.6 mm x 0.6 mm |
| Illumination Color | Red |
| Wavelength/Color Temperature | 638 nm |
| Lens Color/Style | Water Clear |
| Forward Current | 20 mA |
| Forward Voltage | 1.8 V |
| Luminous Intensity | 16 mcd |
| Packaging | Reel |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 30 C |
| Power Rating | 75 mW |
| Factory Pack Quantity | 4000 |
| Dominant Wavelength | 638 |
| Maximum Forward Current | 40 |
| Maximum Power Dissipation | 100 |
| Viewing Angle | 130 |
| Reverse Voltage | 5 |
| EU RoHS | Compliant |
| Maximum Forward Voltage per Color | 2.4 |
| Peak Wavelength | 660 |
| Minimum Operating Temperature | -55 |
| Lens Dimensions | 1.2x0.6x0.47 |
| Maximum Operating Temperature | 85 |
| LED Material | GaAlAs |
| High Brightness | No |
| Voltage - Forward (Vf) Typ | 1.8V |
| Mounting Type | Surface Mount, Right Angle |
| Lens Style/Size | Rectangle with Flat Top, 1.2mm x 0.6mm |
| Wavelength - Dominant | 638nm |
| Size / Dimension | 1.60mm L x 1.15mm W |
| Millicandela Rating | 16mcd |
| Wavelength - Peak | 660nm |
| Current - Test | 20mA |
| Height | 0.60mm |
| Lens Type | Clear |
| Package/Case | 2-SMD, No Lead, Exposed Pad |
| rohs | Lead free / RoHS Compliant |
| Other Names | 160-1473-1 |
