LTST-S270KRKT
LED Uni-Color Red 639nm 2-Pin Chip LED T/R
廠商型號:
LTST-S270KRKT
芯天下內部編號:
203-LTST-S270KRKT
生產廠商:
lite-on
描述:
LED Uni-Color Red 639nm 2-Pin Chip LED T/R
產品類別:
Lighting|HB LEDs

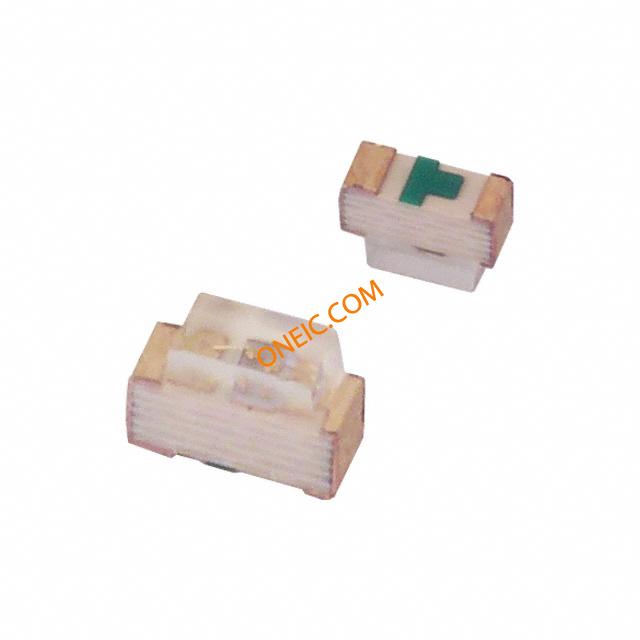

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 2Chip LED |
| Type | Uni-Color |
| Number of LEDs | 1 |
| LED Material | AlGaInP |
| Intensity | 54 mcd |
| Peak Wavelength | 639 nm |
| Color | Red |
| Lens Appearance | Colorless Non Diffused |
| Lens Shape Type | Rectangular |
| Viewing Angle | 130 ° |
| Mounting Orientation | Right Angle |
| Standard Package | Cut Tape |
| Standard Package | Tape & Reel |
| Product Category | Standard LEDs - SMD |
| RoHS | RoHS Compliant |
| Package / Case | 0603 |
| LED Size | 1.6 mm x 0.6 mm |
| Illumination Color | Red |
| Wavelength/Color Temperature | 631 nm |
| Lens Color/Style | Water Clear |
| Forward Current | 20 mA |
| Forward Voltage | 2 V |
| Luminous Intensity | 54 mcd |
| Packaging | Reel |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 55 C |
| Power Rating | 75 mW |
| Factory Pack Quantity | 4000 |
| Voltage - Forward (Vf) Typ | 2V |
| Mounting Type | Surface Mount, Right Angle |
| Lens Style/Size | Rectangle with Flat Top, 1.2mm x 0.6mm |
| Wavelength - Dominant | 631nm |
| Size / Dimension | 1.60mm L x 1.15mm W |
| Millicandela Rating | 54mcd |
| Wavelength - Peak | 639nm |
| Current - Test | 20mA |
| Height | 0.60mm |
| Lens Type | Clear |
| Package/Case | 0603 (1608 Metric) |
| rohs | Lead free / RoHS Compliant |
| Other Names | 160-1479-1 |
| Dominant Wavelength | 631 nm |
| LED Colours | Red |
| Lens Shape | Rectangular |
| Number of Pins | 2 |
| Package Size | 1.6 x 0.6mm |
| Emitting Color | Red |
| Lum Intensity | 54mcd |
| Power Dissipation | 75 W |
| Mounting | Surface Mount |
| Operating Temp Range | -55C to 85C |
| Package Type | Chip Led |
| Pin Count | 2 |
| High Brightness | Yes |
| Shape Type | Rectangular |
| Number of Elements | 1 |
| Operating Temperature Classification | Industrial |
| Reverse Voltage | 5 V |
| Lens Dimensions | 1.2X0.6X0.47 mm |
| Dominant Wave Length | 631 nm |
| Test Current (It) | 20 mA |
| Chip Material | AlGaInP |
| Main Category | Chip LED |
| Rad Hardened | No |
| Product Depth (mm) | 0.6 mm |
| Product Length (mm) | 1.6 mm |
| DELETED | Compliant |
| 電流 - 測試 | 20mA |
| 大小/尺寸 | 1.60mm L x 1.15mm W |
| 透鏡樣式/尺寸 | Rectangle with Flat Top, 1.2mm x 0.6mm |
| 高度 | 0.60mm |
| 視角 | 130° |
| 波長 - 峰值 | 639nm |
| 波長 - 主 | 631nm |
| 封裝/外殼 | 0603 (1608 Metric) |
| 毫燭光等級 | 54mcd |
| 透鏡類型 | Clear |
| 裝配類型 | Surface Mount, Right Angle |
| 顏色 | Red |
| 透鏡形狀 | 矩形 |
| LED 數目 | 1 |
| 光強度 | 54 mcd |
| 安裝類型 | 表面安裝 |
| LED 材料 | AlGaInP |
| 封裝類型 | 1608 (0603) 側視 |
| 針數目 | 2 |
| 正向電壓 | 2.4 V |
| 尺寸 | 1.6 x 0.6mm |
| 透鏡顏色 | 透明 |
| LED 顏色 | 紅色 |
| 主波長 | 631 nm |
| I(F) nominal | 20 mA |
| SMT/ SMD | YES. |
| Automotive | NO |
| Surface colour | CLEAR |
| Emitted colour | RED |
| Case type | LOW POWER |
| Forward voltage | 2 V |
| Lumintenmin | 54 mcd |
| Number of chips | 1 |
| Leadfree Defin | RoHS-conform |
| Case size | 1,6x0,6 LxW |
| Lambda domtyp | 631 nm |
| Emission angle | 130 ° |
