M2018B2B3W01
Toggle Switches (ON)OFF(ON) .7 LRG BAT SPLSPRF BSHG LUG
廠商型號:
M2018B2B3W01
芯天下內部編號:
240-M2018B2B3W01
生產廠商:
NKK Switches
描述:
Toggle Switches (ON)OFF(ON) .7 LRG BAT SPLSPRF BSHG LUG
產品類別:
Switches|Toggle Switches|M
客戶編號:
規格書:
查看PDF

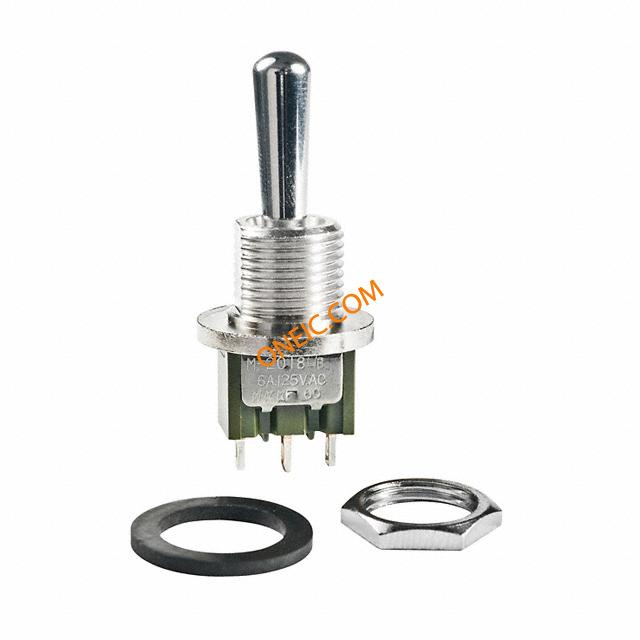

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Circuit | SPDT |
| Illumination | Non-Illuminated |
| Switch Function | Mom-Off-Mom |
| Current Rating | 6A (AC), 3A (DC) |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 125V |
| Electrical Life | 25,000 Cycles |
| Termination Style | Solder Lug |
| Packaging | Bulk |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Type | Standard Round |
| Standard Package | 1 |
| Voltage Rating - DC | 30V |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Bushing Thread | M12 x 1 |
| Actuator Material | Brass, Chrome Plated |
| Actuator Length | 17.50mm |
| Features | Epoxy Sealed Terminals |
| Voltage Rating AC | 125 V, 250 V |
| Product Category | Toggle Switches |
| Terminal Seal | Sealed |
| Series | M |
| Contact Form | SPDT |
| Voltage Rating DC | 30 V |
| Bushing Size | 0.472 in (12 mm) |
| Mounting Style | Through Hole |
| Contact Plating | Silver |
| Actuator | Bat |
| Part # Aliases | M-2018L/B-C4B |
| RoHS | RoHS Compliant |
| Contact Configuration | :SPDT |
| Switch Operation | :(On)-Off-(On) |
| Contact Voltage AC Nom | :125V |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :6A |
| Switch Terminals | :Solder |
| Actuator Style | :Bat |
| Weight (kg) | 0 |
| Tariff No. | 85365080 |
