M2018BB1W01
Toggle Switches (ON)-OFF-(ON) SPDT
廠商型號:
M2018BB1W01
芯天下內部編號:
240-M2018BB1W01
生產廠商:
NKK Switches
描述:
Toggle Switches (ON)-OFF-(ON) SPDT
產品類別:
Switches|Toggle Switches|M

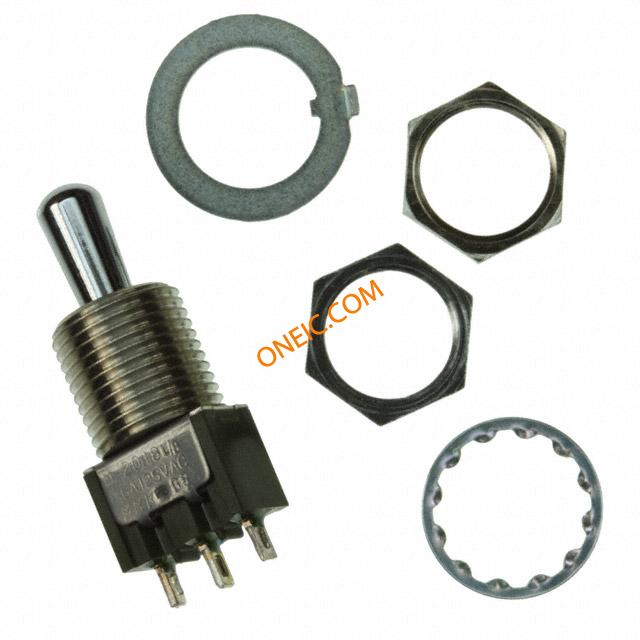

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Actuator Style | Large Bat Toggle |
| Electrical Life | 25000 |
| Type | Miniature |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Pole Throw Configuration | SPDT |
| Mounting | Panel Mount with Threads |
| Maximum AC Voltage Rating | 250 |
| Maximum Current Rating | 6@125VAC |
| Maximum DC Voltage Rating | 30 |
| Switch Configuration | (ON) OFF (ON) |
| Contact Plating | Silver |
| Minimum Operating Temperature | -30 |
| Mechanical Life | 100000 |
| Terminal Type | Solder Lug |
| Contact Material | Silver Alloy |
| Circuit | SPDT |
| Illumination | Non-Illuminated |
| Switch Function | Mom-Off-Mom |
| Current Rating | 6A (AC), 3A (DC) |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 125V |
| Electrical Life | 25,000 Cycles |
| Termination Style | Solder Lug |
| Packaging | Bulk |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Type | Standard Round |
| Standard Package | 1 |
| Voltage Rating - DC | 30V |
| Bushing Thread | M12 x 1 |
| Actuator Material | Brass, Chrome Plated |
| Actuator Length | 11.50mm |
| Features | Epoxy Sealed Terminals |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating AC | 125 V, 250 V |
| Product Category | Toggle Switches |
| Terminal Seal | Sealed |
| Series | M |
| Contact Form | SPDT |
| Voltage Rating DC | 30 V |
| Bushing Size | M12 |
| Mounting Style | Panel |
| Actuator | Bat |
| Part # Aliases | M-2018L/B |
| RoHS | RoHS Compliant |
| Current Rating (Max) | 6 A |
| Operating Temperature Max Deg. C | 85C |
| Operating Temperature Min Deg. C | -30C |
| Mechanical Life | 100000 |
| AC Voltage Rating (Max) | 250V VAC |
| DC Voltage Rating (Max) | 30V VDC |
| Contact Configuration | :SPDT |
| Switch Operation | :(On)-Off-(On) |
| Contact Voltage AC Nom | :125V |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :6A |
| Switch Terminals | :Solder |
| Weight (kg) | 0 |
| Tariff No. | 85365080 |
| ActuatorType | Bat |
| BodyStyle | Miniature |
| ContactForm | SPDT |
| Current,Rating | 6Amps |
| DielectricStrength | 1500VAC |
| MountingHoleSize | 0.492In. |
| MountingType | Panel |
| NumberofPoles | 1 |
| NumberofPositions | 3 |
| Operation | (On)Off(On) |
| SpecialFeatures | LargeBat |
| Termination | SolderLugs |
| Voltage,Rating | 250VAC |
