MPZ1608S101A

Ind Chip Bead 100Ohm 25% 100MHz 3A 0603

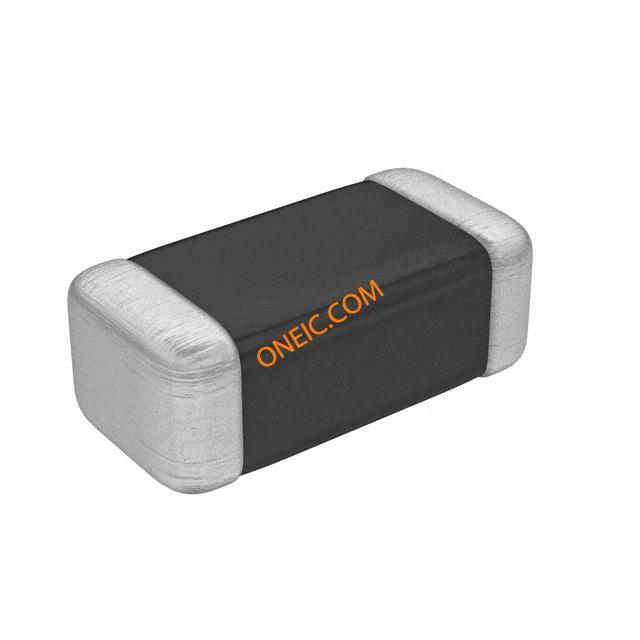

Thumbnail MPZ1608S101A Thumbnail MPZ1608S101A Thumbnail MPZ1608S101A Thumbnail MPZ1608S101A Thumbnail MPZ1608S101A Thumbnail MPZ1608S101A Thumbnail MPZ1608S101A Thumbnail MPZ1608S101A
廠商型號: MPZ1608S101A
芯天下內部編號: 367-MPZ1608S101A
生產廠商:
tdk tdk
描述: Ind Chip Bead 100Ohm 25% 100MHz 3A 0603
產品類別: Inductor|Inductor Surface Mount
客戶編號:
規格書: 查看PDF
瀏覽次數: 9

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package/Case 0603
Type Chip Bead
Maximum DC Current 3 A
Tolerance 25 %
Maximum DC Resistance 30 mOhm
Impedance 100 Ohm
Product Depth 0.95 mm
Product Height 0.75 mm
Standard Package Tape & Reel
Maximum DC Resistance 30m
Product Length 1.75
EU RoHS Compliant
Maximum Operating Temperature 125
Maximum DC Current 3
Product Depth 0.95
Product Height 0.75
Impedance 100
Case Size 0603
Test Frequency 100M
Minimum Operating Temperature -55
Unit Pack 4000
MOQ 4000
Subcategory Ferrite Beads
Lead Time 70 Days
Packaging Tape & Reel (TR)
Filter Type Differential Mode - Single
Current Rating 3A
DC Resistance (DCR) 30 mOhm Max
Height (Max) 0.030" (0.75mm)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Mounting Type Surface Mount
Impedance @ Frequency 100 Ohm @ 100MHz
rohs Lead free / RoHS Compliant
Other Names 445-1564-1
Factory Pack Quantity 4000
Product Ferrite Chip Beads
Product Category EMI Filter Beads, Chips & Arrays
Dimensions 0.8 mm W x 1.6 mm L x 0.6 mm H
Operating Temperature Range - 55 C to + 125 C
Termination Style SMD/SMT
Case Length 1.6 mm
Test Frequency 100 MHz
Case Height 0.6 mm
Package / Case 0603 (1608 metric)
Case Width 0.8 mm
RoHS RoHS Compliant
Operating Temp Range -55C to 125C
Rad Hardened No
Failure Rate Not Required
Case Size (Inches) 0603
Tolerance (+ or -) 25%
Inductance Not Required uH
Military Standard Not Required
Product Length (mm) 1.75 mm
Product Depth (mm) 0.8 mm
Product Height (mm) 0.75 mm
DC Current 3000 mA
DC Resistance 0.03 ohm
Product Diameter (mm) Not Required mm
Ferrite Case Style :0603 ^1608 Metric]
Ferrite Mounting :SMD
Impedance Tolerance :± 25%
DC Current Rating :3A
DC Resistance Max :0.03ohm
Series :MPZ
Weight (kg) 0
Tariff No. 85049011
Impedance @ 100MHz :100ohm
SVHC :No SVHC (20-Jun-2013)
Core Material :Ferrite
Resistance :0.03ohm
