OP270FZ
OP Amp Dual GP ±18V 8-Pin CDIP
廠商型號:
OP270FZ
芯天下內部編號:
1-OP270FZ
生產廠商:
analog devices
描述:
OP Amp Dual GP ±18V 8-Pin CDIP
產品類別:
Amplifiers|OP Amp

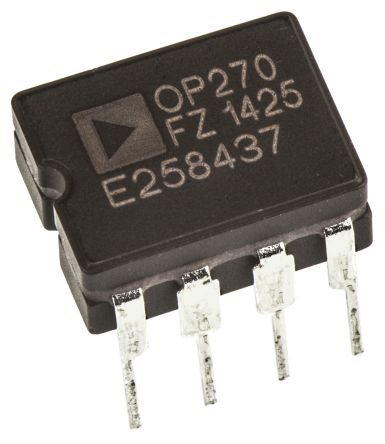

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8CDIP |
| Number of Channels per Chip | 2 |
| Type | General Purpose Amplifier |
| Typical Gain Bandwidth Product | 5 MHz |
| Typical Slew Rate | 2.4@±15V V/us |
| Maximum Supply Current | 6.5@±15V mA |
| Maximum Input Offset Voltage | 0.15@±15V mV |
| Maximum Input Bias Current | 0.04@±15V uA |
| Typical Input Noise Voltage Density | 3.6@±15V nV/rtHz |
| Minimum CMRR | 100 dB |
| Minimum Dual Supply Voltage | ±4.5 V |
| Mounting | Through Hole |
| Operating Temperature | -40 to 85 °C |
| Typical NonInverting Input Noise Current Density | 1.1@±15V pA/rtHz |
| Typical Voltage Gain | 124.609 dB |
| Standard Package | Rail / Tube |
| Manufacturer Type | Low Noise Amplifier |
| Rail to Rail | No |
| Package Width | 7.87(Max) |
| PCB | 8 |
| Screening Level | Extended Industrial |
| Maximum Dual Supply Voltage | ±18 |
| Maximum Input Bias Current | 0.04@±15V |
| EU RoHS | Not Compliant |
| Maximum Supply Current | 6.5@±15V |
| Typical Gain Bandwidth Product | 5 |
| Typical Voltage Gain | 124.609 |
| Power Supply Type | Dual |
| Minimum CMRR | 100 |
| Minimum Operating Temperature | -40 |
| Supplier Package | CDIP |
| Standard Package Name | CDIP |
| Maximum Operating Temperature | 85 |
| Minimum Dual Supply Voltage | ±4.5 |
| Typical Dual Supply Voltage | ±5|±9|±12|±15 |
| Shut Down Support | No |
| Package Length | 10.29(Max) |
| Pin Count | 8 |
| Maximum Input Offset Current | 0.015@±15V |
| Maximum Input Offset Voltage | 0.15@±15V |
| Package Height | 3.56(Max) |
| Minimum PSRR | 120(Typ) |
| Typical Slew Rate | 2.4@±15V |
| Technology | Bipolar |
| Lead Shape | Through Hole |
| Amplifier Type | General Purpose |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-CERDIP |
| Packaging | Tube |
| Current - Supply | 4mA |
| Voltage - Supply, Single/Dual (±) | ±4.5 V ~ 18 V |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Slew Rate | 2.4 V/μs |
| Current - Input Bias | 10nA |
| Voltage - Input Offset | 20μV |
| Number of Circuits | 2 |
| Gain Bandwidth Product | 5MHz |
| rohs | RoHS non-compliant |
| Factory Pack Quantity | 48 |
| Dual Supply Voltage | +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V |
| Input Voltage Range - Max | 12.5 V |
| Operating Supply Voltage | 12.5 V |
| Mounting Style | Through Hole |
| Number of Channels | 2 Channel |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Maximum Dual Supply Voltage | +/- 18 V |
| Supply Voltage - Max | 15 V |
| Supply Voltage - Min | 12 V |
| RoHS | No |
| Series | OP270 |
| Input Offset Voltage | 20 uV |
| Supply Current | 4 mA |
| Operating Temp Range | -40C to 85C |
| Package Type | CDIP |
| Number of Elements | 2 |
| Common Mode Rejection Ratio | 100 dB |
| Operating Temperature Classification | Industrial |
| Dual Supply Voltage (Typ) | ?5/?9/?12/?15 V |
| Input Bias Current | 40 nA |
| Power Supply Requirement | Dual |
| Dual Supply Voltage (Min) | ?4.5 V |
| Rail/Rail I/O Type | No |
| Shut Down Feature | No |
| Rad Hardened | No |
| Single Supply Voltage (Min) | Not Required V |
| Single Supply Voltage (Max) | Not Required V |
| Single Supply Voltage (Typ) | Not Required V |
| Dual Supply Voltage (Max) | ?18 V |
| Power Supply Rejection Ratio | 120 dB |
| Voltage Gain in dB | 124.609 dB |
| Unity Gain Bandwidth Product | 5MHz |
| DELETED | Not Compliant |
| Op Amp Type | :Low Noise |
| No. of Amplifiers | :2 |
| Supply Voltage Range | :± 4.5V to ± 18V |
| Amplifier Case Style | :DIP |
| No. of Pins | :8 |
| Bandwidth | :5MHz |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :270 |
| IC Generic Number | :270 |
| Input Offset Voltage Max | :0.15mV |
| Logic Function Number | :270 |
| Operating Temperature Range | :-40°C to +85°C |
| Operational Amplifier Features | :Precision, Low Noise |
| Supply Voltage + Nom | :15V |
| Supply Voltage Max | :18V |
| Weight (kg) | 0.000833 |
| Tariff No. | 85423300 |
