SSF67A50A200PM12
DL LVL FLOATSW 227MM TOTAL L
廠商型號:
SSF67A50A200PM12
芯天下內部編號:
97-SSF67A50A200PM12
生產廠商:
Cynergy 3
描述:
DL LVL FLOATSW 227MM TOTAL L
產品類別:
Automation & Control Gear|Fluid Control Systems|Level Sensors & Switches
客戶編號:
規格書:
查看PDF

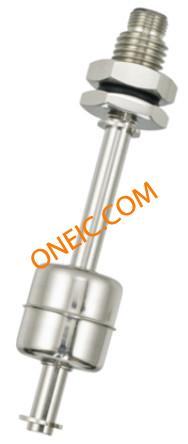

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Series | * |
| Other Names | 725-1325 |
| Standard Package | 1 |
| Body Material | Stainless Steel |
| Device Type | Float |
| Gasket Material | Nitrile |
| Maximum Current | 0.6 A |
| Maximum Operating Temperature | +135°C |
| Maximum Pressure | 10bar |
| Minimum Operating Temperature | -20°C |
| Mounting Type | Vertical |
| Switch Output | 2NO |
| rohs | Non Compliant |
| MainCategory | Liquid Level Sensors |
| 開關輸出 | 2 常開 |
| 最大電流 | 0.6 A |
| 裝置類型 | 浮動 |
| 最高工作溫度 | +135°C |
| 安裝類型 | 垂直 |
| 最低工作溫度 | -20°C |
| 主體材料 | 不銹鋼 |
| 墊片材料 | 腈 |
| 最大壓力 | 10bar |
