SSH66TE34N100S
SHORT FLOAT HORIZ SS .1A EXT MNT
廠商型號:
SSH66TE34N100S
芯天下內部編號:
97-SSH66TE34N100S
生產廠商:
Cynergy 3
描述:
SHORT FLOAT HORIZ SS .1A EXT MNT
產品類別:
Sensors, Transducers|Float, Level Sensors|SSH66TE
客戶編號:
規格書:
查看PDF

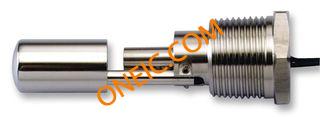

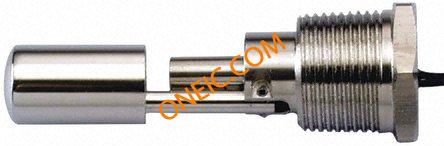

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Material - Housing & Prism | 304 Stainless Steel, 316 Stainless Steel |
| Mounting Type | Male 3/4" (19.05mm) NPT |
| Voltage Rating | 24VDC, 24VAC |
| Minimum Liquid Specific Gravity | 0.75 |
| Operating Temperature | -20°C ~ 120°C |
| Standard Package | 1 |
| Output Configuration | SPST-NC/NO, 100mA |
| Type | Liquid |
| Other Names | 725-1143 |
| Body Material | Stainless Steel |
| Cable Length | 100cm |
| Device Type | Float |
| Maximum Current | 0.1 A |
| Maximum Operating Temperature | +120°C |
| Maximum Pressure | 10bar |
| Minimum Operating Temperature | 0°C |
| Switch Output | NO/NC |
| rohs | Compliant |
| Output Current | :100mA |
| Operating Pressure Max | :10bar |
| Sensor Body Material | :Stainless Steel |
| SVHC | :No SVHC (20-Jun-2013) |
| Level Sensor Type | :Liquid |
| Operating Pressure Range | :0bar to 10bar |
| Output Type | :NO, NC |
| Sensor Output1 | :SPST-NO / SPST-NC |
| Weight (kg) | 0.128 |
| Tariff No. | 90261089 |
