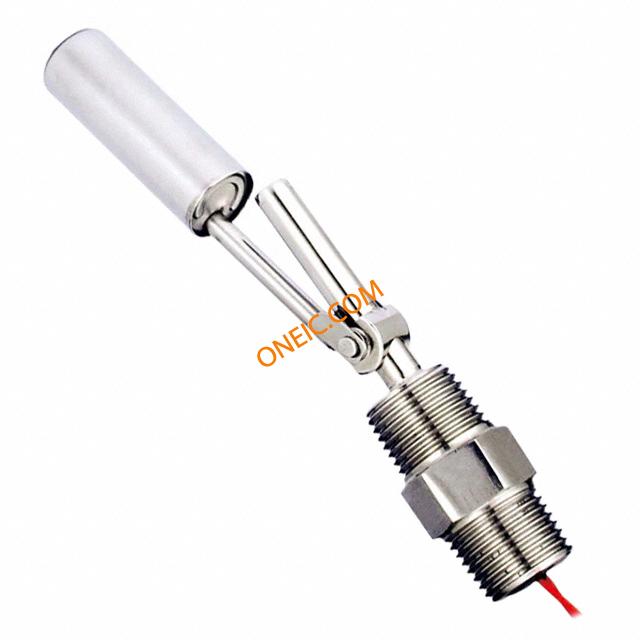

SSH66XU12N100
SWITCH HORIZ SS .5A INT/EXT MNT
廠商型號:
SSH66XU12N100
芯天下內部編號:
97-SSH66XU12N100
生產廠商:
Cynergy 3
描述:
SWITCH HORIZ SS .5A INT/EXT MNT
產品類別:
Sensors, Transducers|Float, Level Sensors|SSH66XU
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Material - Housing & Prism | 304 Stainless Steel, 316 Stainless Steel |
| Mounting Type | Male 1/2" (12.7mm) NPT |
| Voltage Rating | 300VDC, 300VAC |
| Minimum Liquid Specific Gravity | 0.75 |
| Operating Temperature | -20°C ~ 120°C |
| Standard Package | 1 |
| Output Configuration | SPST-NC/NO, 600mA |
| Type | Liquid |
| Other Names | 725-1147 |
| Body Material | Stainless Steel |
| Cable Length | 100cm |
| Device Type | Float |
| Maximum Current | 0.1 A |
| Maximum Operating Temperature | +120°C |
| Maximum Pressure | 10bar |
| Minimum Operating Temperature | 0°C |
| Switch Output | NO/NC |
| rohs | Compliant |
| Output Current | :100mA |
| Operating Pressure Max | :10bar |
| Sensor Body Material | :Stainless Steel |
| Supply Voltage DC Min | :0V |
| Supply Voltage DC Max | :300V |
| SVHC | :No SVHC (20-Jun-2013) |
| Level Sensor Type | :Liquid |
| Operating Pressure Range | :0bar to 10bar |
| Output Type | :NO, NC |
| Sensor Output1 | :SPST-NO / SPST-NC |
| Supply Voltage Range AC | :0V to 300V |
| Supply Voltage Range DC | :0V to 300V |
| Weight (kg) | 0.137 |
| Tariff No. | 90261089 |
