TLC2264CD
OP Amp Quad GP R-R O/P ±8V/16V 14-Pin SOIC Tube
廠商型號:
TLC2264CD
芯天下內部編號:
136-TLC2264CD
生產廠商:
texas instruments
描述:
OP Amp Quad GP R-R O/P ±8V/16V 14-Pin SOIC Tube
產品類別:
Amplifiers|OP Amp

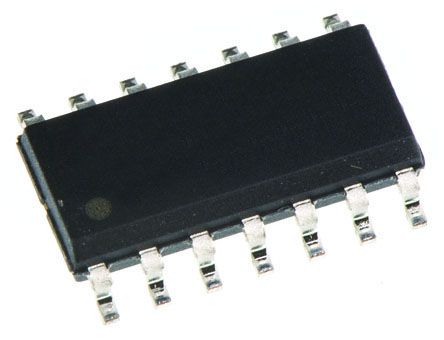

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 14SOIC |
| Number of Channels per Chip | 4 |
| Type | General Purpose Amplifier |
| Typical Gain Bandwidth Product | 0.71 MHz |
| Typical Slew Rate | 0.55@5V V/us |
| Rail to Rail | Rail to Rail Output |
| Maximum Supply Current | 1@5V mA |
| Maximum Input Offset Voltage | 2.5@±2.5V mV |
| Maximum Input Bias Current | 0.000001(Typ)@±2.5V uA |
| Typical Input Noise Voltage Density | 40@5V nV/rtHz |
| Minimum CMRR | 70 dB |
| Minimum Single Supply Voltage | 4.4 V |
| Maximum Single Supply Voltage | 16 V |
| Minimum Dual Supply Voltage | ±2.2 V |
| Maximum Dual Supply Voltage | ±8 V |
| Mounting | Surface Mount |
| Operating Temperature | 0 to 70 °C |
| Typical NonInverting Input Noise Current Density | 0.0006@5V pA/rtHz |
| Typical Voltage Gain | 114.81 dB |
| Standard Package | Rail / Tube |
| Manufacturer Type | Low Noise Amplifier |
| Typical Single Supply Voltage | 5|9|12|15 |
| Package Width | 4(Max) |
| PCB | 14 |
| Maximum Power Dissipation | 950 |
| Maximum Dual Supply Voltage | ±8 |
| Maximum Input Bias Current | 0.000001(Typ)@±2.5V |
| EU RoHS | Compliant |
| Maximum Supply Current | 1@5V |
| Typical Gain Bandwidth Product | 0.71 |
| Typical Voltage Gain | 114.81 |
| Power Supply Type | Single|Dual |
| Output Type | CMOS|Rail to Rail |
| Minimum CMRR | 70 |
| Minimum Operating Temperature | 0 |
| Supplier Package | SOIC |
| Standard Package Name | SOIC |
| Maximum Operating Temperature | 70 |
| Maximum Single Supply Voltage | 16 |
| Minimum Dual Supply Voltage | ±2.2 |
| Typical Dual Supply Voltage | ±3|±5 |
| Shut Down Support | No |
| Package Length | 8.75(Max) |
| Pin Count | 14 |
| Maximum Input Offset Current | 0.0000005(Typ)@±2.5V |
| Maximum Input Offset Voltage | 2.5@±2.5V |
| Minimum Single Supply Voltage | 4.4 |
| Package Height | 1.5(Max) |
| Packaging | Tube |
| Typical Slew Rate | 0.55@5V |
| Technology | LinCMOS |
| Lead Shape | Gull-wing |
| Current - Output / Channel | 50mA |
| Amplifier Type | General Purpose |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Gain Bandwidth Product | 730kHz |
| Current - Supply | 850μA |
| Voltage - Supply, Single/Dual (±) | 4.4 V ~ 16 V, ±2.2 V ~ 8 V |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Slew Rate | 0.55 V/μs |
| Current - Input Bias | 1pA |
| Voltage - Input Offset | 300μV |
| Number of Circuits | 4 |
| Other Names | 296-7103-5 |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 50 |
| Supply Current | 1 mA |
| Operating Supply Voltage | 4.4 V to 16 V, +/- 2.2 V to +/- 8 V |
| Product Category | Operational Amplifiers - Op Amps |
| Common Mode Rejection Ratio - Min | 70 dB |
| Unit Weight | 0.004318 oz |
| Number of Channels | 4 Channel |
| Maximum Operating Temperature | + 70 C |
| Input Bias Current - Max | 100 pA |
| Shutdown | No Shutdown |
| RoHS | RoHS Compliant |
| Output Current | 50 mA |
| Series | TLC2264 |
| Mounting Style | SMD/SMT |
| Input Offset Voltage | 2.5 mV |
| Minimum Operating Temperature | 0 C |
| Power Dissipation | 0.95 W |
| Operating Temp Range | 0C to 70C |
| Package Type | SOIC |
| Number of Elements | 4 |
| Common Mode Rejection Ratio | 70 dB |
| Operating Temperature Classification | Commercial |
| Dual Supply Voltage (Typ) | ?3/?5 V |
| Input Bias Current | 0.001 nA |
| Power Supply Requirement | Single/Dual |
| Dual Supply Voltage (Min) | ?2.2 V |
| Rail/Rail I/O Type | Rail to Rail Output |
| Shut Down Feature | No |
| Rad Hardened | No |
| Single Supply Voltage (Min) | 4.4 V |
| Single Supply Voltage (Max) | 16 V |
| Single Supply Voltage (Typ) | 5/9/12/15 V |
| Dual Supply Voltage (Max) | ?8 V |
| Voltage Gain in dB | 114.81 dB |
| Unity Gain Bandwidth Product | 0.71MHz |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | 0 to 70 |
| Package | Pins | SOIC?(D) | 14 |
| Device Marking | View |
| Package QTY | Carrier | 50 | TUBE |
| New Flag | |
| Functional Diagram | |
| CMRR | 70 |
| GBW | 0.71 |
| Reference Design | |
| HiRel | |
| Package Group | PDIP SOIC TSSOP |
| BW @ Acl | |
| Vs | 16 |
| Iib | |
| Additional Features | |
| Rail-to-Rail | Out |
| Operating Temperature Range | 0 to 70 |
| IIB | 100 |
| Datasheet | SLOS177D |
| Architecture | |
| Vn at Flatband | |
| Iq per channel | 0.25 |
| TI Design | |
| Vos (Offset Voltage @ 25C) | 2.5 |
| Rating | Catalog |
| Offset Drift | 2 |
| Vn at 1kHz | 12 |
| Total Supply Voltage | 4.4 |
| Acl, min spec gain | |
| Settling Time (01%) | |
| Offset Voltage Drift (+/-) | |
| Io | |
| 典型雙電源電壓 | ±3 V, ±5 V |
| 典型電壓增益 | 114.81 dB |
| 典型增益帶寬積 | 710kHz |
| 典型單電源電壓 | 5 → 15 V |
| 典型轉換速率 | 0.55V/μs |
| 安裝類型 | 表面貼裝 |
| 電源類型 | 雙，單 |
| 最低工作溫度 | 0 °C |
| 高度 | 1.58mm |
| 最高工作溫度 | +70 °C |
| 寬度 | 3.91mm |
| 尺寸 | 8.65 x 3.91 x 1.58mm |
| 引腳數目 | 14 |
| 長度 | 8.65mm |
| 輸出類型 | CMOS、軌至軌 |
| 封裝類型 | SOIC |
| 每片芯片通道數目 | 4 |
| Supply Type | Single, Dual |
| Dual Supply Voltage | +/- 3 V, +/- 5 V |
| Operating Supply Current | 200 uA |
| Ib - Input Bias Current | 60 pA |
| Input Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| GBP - Gain Bandwidth Product | 710 kHz |
| Brand | Texas Instruments |
| Tradename | LinCMOS |
| Vcm - Common Mode Voltage | Negative Rail to Positive Rail - 1 V |
| SR - Slew Rate | 0.55 V/us |
| en - Input Voltage Noise Density | 40 nV/sqrt Hz |
| Length | 8.65 mm |
| Supply Voltage - Max | 16 V |
| In - Input Noise Current Density | 0.0006 pA/sqrt Hz |
| Supply Voltage - Min | 4.4 V |
| Voltage Gain dB | 114.81 dB |
| CMRR - Common Mode Rejection Ratio | 83 dB |
| Vos - Input Offset Voltage | 2.5 mV |
| Output Current per Channel | 50 mA |
| Height | 1.58 mm |
| Pd - Power Dissipation | 950 mW |
