TLHG4200
LED Uni-Color Green 565nm 2-Pin T-1 T/R
廠商型號:
TLHG4200
芯天下內部編號:
5-TLHG4200
生產廠商:
vishay / semiconductor
描述:
LED Uni-Color Green 565nm 2-Pin T-1 T/R
產品類別:
Lighting|LEDs

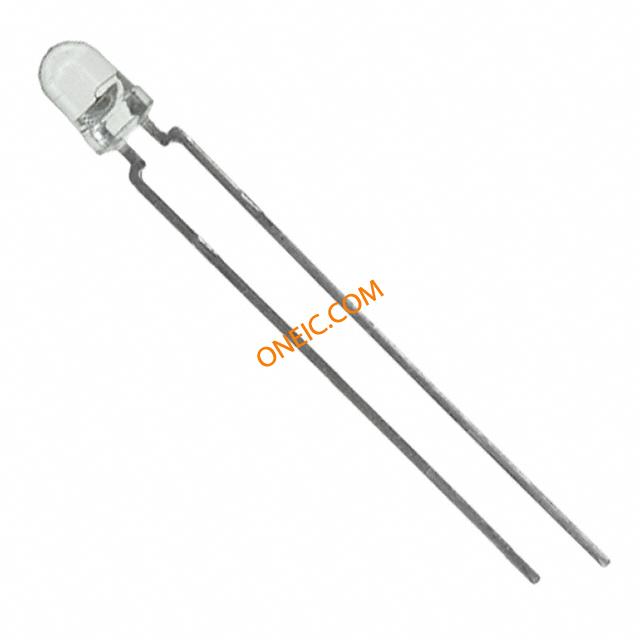

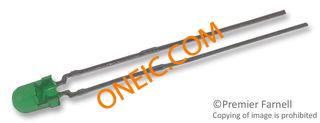

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 2T-1 |
| Pin Count | 2 |
| Type | Uni-Color |
| Number of LEDs | 1 |
| Intensity | 10 mcd |
| Dominant Wavelength/Color Temperature | 575(Max)nm |
| Peak Wavelength | 565 nm |
| Color | Green |
| Lens Appearance | Colored Non Diffused |
| Lens Shape Type | Circular |
| Viewing Angle | 44 ° |
| Mounting Orientation | Top Mount |
| Mounting | Through Hole |
| Standard Package | Bulk |
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Green |
| Luminous Intensity | 10 mcd |
| Wavelength/Color Temperature | 568.5 nm |
| Lens Color/Style | Tinted, Non-Diffused |
| Forward Current | 10 mA |
| Forward Voltage | 2.4 V |
| LED Size | T-1 |
| Packaging | Bulk |
| Lens Dimensions | 2.9 mm x 2.9 mm x 3.5 mm |
| Lens Shape | Dome |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 5000 |
| Dominant Wavelength | 575(Max) |
| Maximum Forward Current | 30 |
| PCB | 2 |
| Maximum Power Dissipation | 100 |
| Viewing Angle | 44 |
| Reverse Voltage | 6 |
| EU RoHS | Compliant |
| Maximum Forward Voltage per Color | 3 |
| Peak Wavelength | 565 |
| Minimum Operating Temperature | -40 |
| LED Material | GaP |
| Lens Dimensions | 2.9x2.9x3.5 |
| Supplier Package | T-1 |
| Standard Package Name | T-1 |
| Maximum Operating Temperature | 100 |
| Package Diameter | 3.2 |
| Package Height | 4.5 |
| High Brightness | No |
| Lead Shape | Through Hole |
| Unit Pack | 5000 |
| MOQ | 5000 |
| Series | * |
| rohs | Lead free / RoHS Compliant |
| Emitting Color | Yellow Green |
| Power Dissipation | 100 W |
| Operating Temp Range | -40C to 100C |
| Package Type | T-1 |
| Shape Type | Circular |
| Number of Elements | 1 |
| Operating Temperature Classification | Industrial |
| Reverse Voltage | 6 V |
| Lens Type | Colored Non Diffused |
| Dominant Wave Length | 575 nm |
| Test Current (It) | 10 mA |
| Chip Material | GaP |
| Main Category | Standard LED |
| Rad Hardened | No |
| Product Depth (mm) | 3.2 mm |
| Product Height (mm) | 4.5 mm |
| Product Length (mm) | 3.2 mm |
| Bulb Size | :T-1 (3mm) |
| LED Color | :Green |
| Forward Current If | :20mA |
| LED Mounting | :Through Hole |
| Wavelength Typ | :575nm |
| Weight (kg) | 0.002 |
| Tariff No. | 85366190 |
| Mounting Type | Through Hole |
| Lens Style/Size | Round with Domed Top, 3mm, T-1 |
| Wavelength - Dominant | 612nm |
| Millicandela Rating | 8mcd |
| Wavelength - Peak | 635nm |
| Package / Case | Radial |
| Current - Test | 20mA |
| Voltage - Forward (Vf) (Typ) | 2V |
| Height | 4.50mm |
