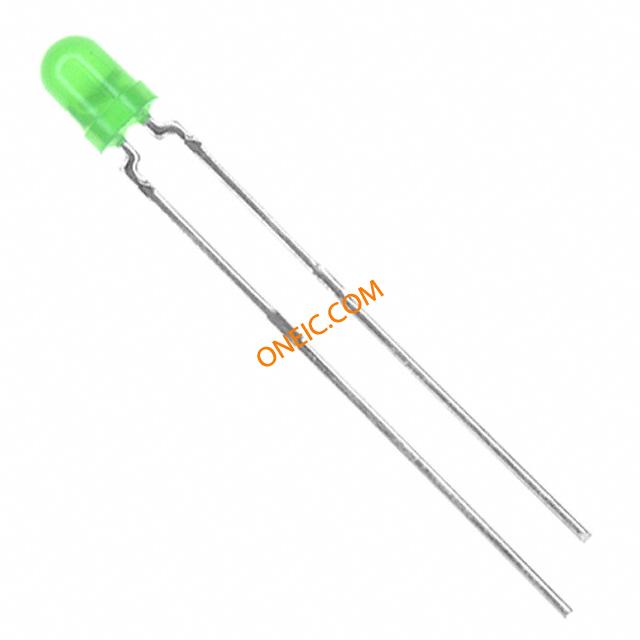

TLHG4600
LED Uni-Color Green 565nm 2-Pin T-1 T/R
廠商型號:
TLHG4600
芯天下內部編號:
5-TLHG4600
生產廠商:
vishay / semiconductor
描述:
LED Uni-Color Green 565nm 2-Pin T-1 T/R
產品類別:
Lighting|LEDs
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 2T-1 |
| Pin Count | 2 |
| Type | Uni-Color |
| Number of LEDs | 1 |
| Intensity | 4 mcd |
| Dominant Wavelength/Color Temperature | 575(Max)nm |
| Peak Wavelength | 565 nm |
| Color | Green |
| Lens Appearance | Colored Diffused |
| Lens Shape Type | Circular |
| Viewing Angle | 120 ° |
| Mounting Orientation | Top Mount |
| Mounting | Through Hole |
| Standard Package | Bulk |
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant By Exemption |
| Illumination Color | Green |
| Luminous Intensity | 4 mcd |
| Wavelength/Color Temperature | 568.5 nm |
| Lens Color/Style | Tinted, Diffused |
| Forward Current | 10 mA |
| Forward Voltage | 2.4 V |
| LED Size | T-1 |
| Packaging | Bulk |

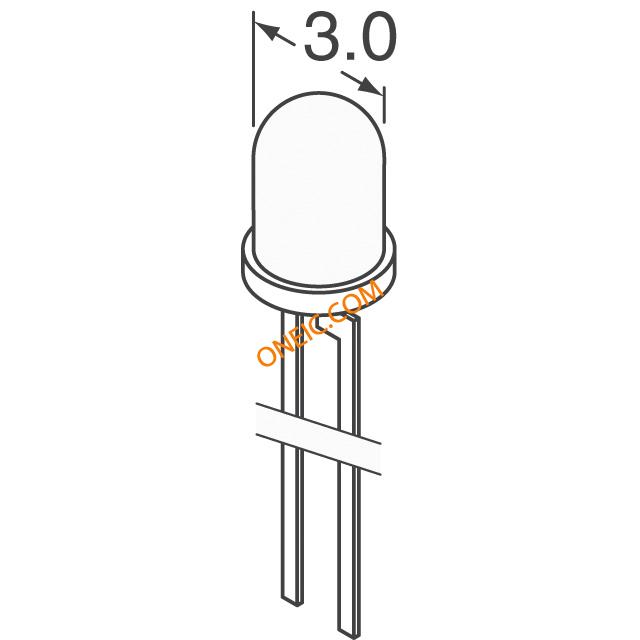

| Lens Dimensions | 2.9 mm x 2.9 mm x 3.5 mm |
| Lens Shape | Dome |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 20 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 5000 |
| Dominant Wavelength | 575(Max) |
| Maximum Forward Current | 30 |
| Maximum Power Dissipation | 100 |
| Viewing Angle | 120 |
| Reverse Voltage | 15(Typ) |
| EU RoHS | Compliant |
| Maximum Forward Voltage per Color | 3 |
| Peak Wavelength | 565 |
| Minimum Operating Temperature | -20 |
| LED Material | GaP |
| Lens Dimensions | 2.9x2.9x3.5 |
| Supplier Package | T-1 |
| Standard Package Name | T-1 |
| Maximum Operating Temperature | 100 |
| High Brightness | No |
| Lead Shape | Through Hole |
| Voltage - Forward (Vf) Typ | 2.4V |
| Mounting Type | Through Hole |
| Lens Style/Size | Round with Domed Top, 3mm, T-1 |
| Lens Type | Diffused, Tinted |
| Wavelength - Dominant | 568.5nm |
| Millicandela Rating | 4mcd |
| Wavelength - Peak | 565nm |
| Current - Test | 10mA |
| Height | 4.50mm |
| Other Names | 751-1102 |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| Package / Case | Radial |
| Voltage - Forward (Vf) (Typ) | 2.4V |
