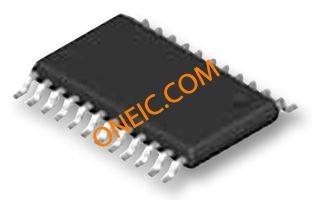

TPD12S016PWR
Single Chip HDMI Interface Device 24-Pin TSSOP T/R
廠商型號:
TPD12S016PWR
芯天下內部編號:
136-TPD12S016PWR
生產廠商:
texas instruments
描述:
Single Chip HDMI Interface Device 24-Pin TSSOP T/R
產品類別:
Interface|Interface Misc
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 24TSSOP |
| Operating Temperature | -40 to 85 °C |
| Standard Package | Tape & Reel |
| Standard Package Name | TSSOP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Package Height | 1.05(Max) |
| Mounting | Surface Mount |
| Packaging | Tape and Reel |
| PCB | 24 |
| Package Width | 4.5(Max) |
| Supplier Package | TSSOP |
| Package Length | 7.9(Max) |
| Minimum Operating Temperature | -40 |
| Pin Count | 24 |
| Lead Shape | Gull-wing |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-TSSOP |
| Applications | HDMI, I2C Buffer, ESD Protection |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Interface | HDMI |
| Other Names | 296-29690-2 |
| rohs | Lead free / RoHS Compliant |
| Operating Supply Voltage | 1.1 V to 3.6 V, 4.5 V to 5.5 V |
| Factory Pack Quantity | 2000 |
| Product Category | Interface - Specialized |
| Series | TPD12S016 |
| Minimum Operating Temperature | - 40 C |
| Supply Current | 4 uA |
| Product Type | HDMI Interface |
| Maximum Operating Temperature | + 85 C |
| RoHS | RoHS Compliant |
| Package Type | TSSOP |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Industrial |
| Rad Hardened | No |
| IC Interface Type | :HDMI |
| Supply Voltage Min | :1.1V |
| Supply Voltage Max | :3.6V |
| Digital IC Case Style | :TSSOP |
| No. of Pins | :24 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| Weight (kg) | 0 |
| Tariff No. | 85423990 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | TSSOP?(PW) | 24 |
| Device Marking | View |
| Package QTY | Carrier | 2000 | LARGE T&R |
| Bi-/Uni-Directional | Uni-Directional |
| New Flag | |
| Functional Diagram | |
| IEC 61000-4-2 Air-Gap | 12 |
| Package Group | TSSOP UQFN |
| Number of Channels | 12 |
| Reference Design | Y |
| IEC 61000-4-2 Contact | 8 |
| Clamping Voltage | 10 |
| Operating Temperature Range | -40 to 85 |
| IO Leakage Current | 500 |
| Datasheet | SLLSE96E |
| Special Features | Current Limit Level Shifter |
| Rating | Catalog |
| TI Design | Y |
| IO Capacitance | 1 |
| Breakdown Voltage | 9 |
