VPP24-420
Power Transformers 10VA 24VCT at 0.42A 12V at 0.84A PCMNT
廠商型號:
VPP24-420
芯天下內部編號:
365-VPP24-420
生產廠商:
Triad Magnetics
描述:
Power Transformers 10VA 24VCT at 0.42A 12V at 0.84A PCMNT
產品類別:
Power|Transformers|Power Transformers

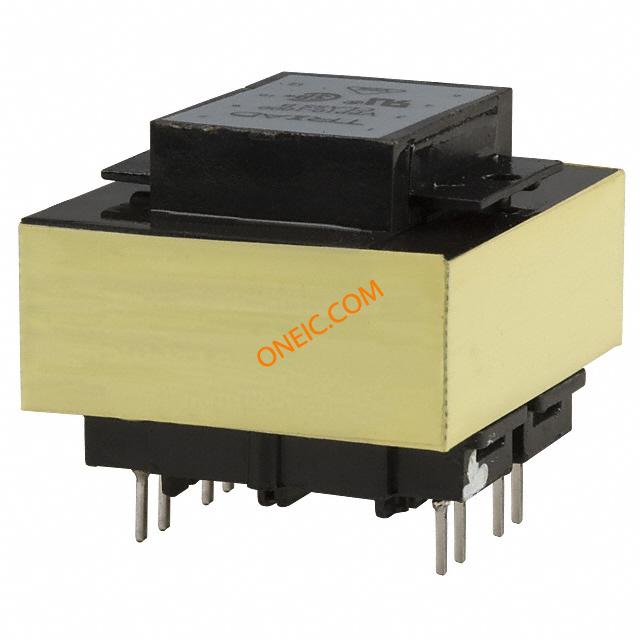

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Secondary Winding(s) | Dual |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Height - Seated (Max) | 34.93mm |
| Mounting Type | Through Hole |
| Voltage - Isolation | 4000Vrms |
| Primary Winding(s) | Dual |
| Termination Style | PC Pin |
| Size / Dimension | 47.63mm L x 39.67mm W |
| Power - Max | 10 VA |
| Current - Output (Max) | Parallel 840mA, Series 420mA |
| Center Tap | No |
| Standard Package | 1 |
| Type | Laminated Core |
| Voltage - Primary | 115V, 230V |
| Factory Pack Quantity | 20 |
| Product | Power Transformers |
| Product Category | Power Transformers |
| Unit Weight | 10.400001 oz |
| Height | 1.25 in |
| Mounting Style | SMD/SMT |
| Width | 1.562 in |
| Length | 1.875 in |
| Secondary Winding | Dual Secondary Winding |
| Power Rating | 10 VA |
| RoHS | RoHS Compliant |
| Primary Winding | Dual Primary Winding |
| Primary Voltages | :2 x 115V |
| Secondary Voltages | :2 x 12V |
| Current Rating | :840mA |
| Plug Type | :- |
| Input Voltage | :115VAC |
| Leaded Process Compatible | :Yes |
| Output Current | :0.84A |
| Secondary Current Nom | :0.84A |
| Weight (kg) | 0.281 |
| Tariff No. | 85043180 |
