VPP24-830
Power Transformers 20VA 24VCT at 0.83A 12V at 1.66A PCMNT
廠商型號:
VPP24-830
芯天下內部編號:
365-VPP24-830
生產廠商:
Triad Magnetics
描述:
Power Transformers 20VA 24VCT at 0.83A 12V at 1.66A PCMNT
產品類別:
Power|Transformers|Power Transformers
客戶編號:
規格書:
查看PDF

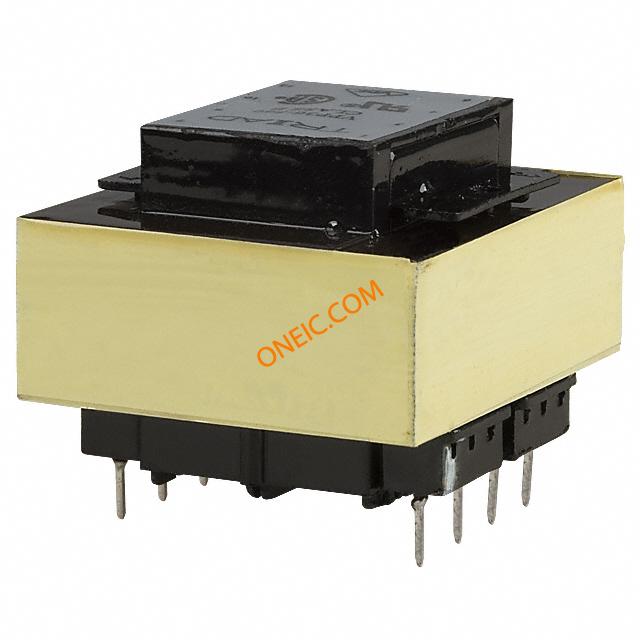

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Secondary Winding(s) | Dual |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Height - Seated (Max) | 41.28mm |
| Mounting Type | Through Hole |
| Voltage - Isolation | 4000Vrms |
| Primary Winding(s) | Dual |
| Termination Style | PC Pin |

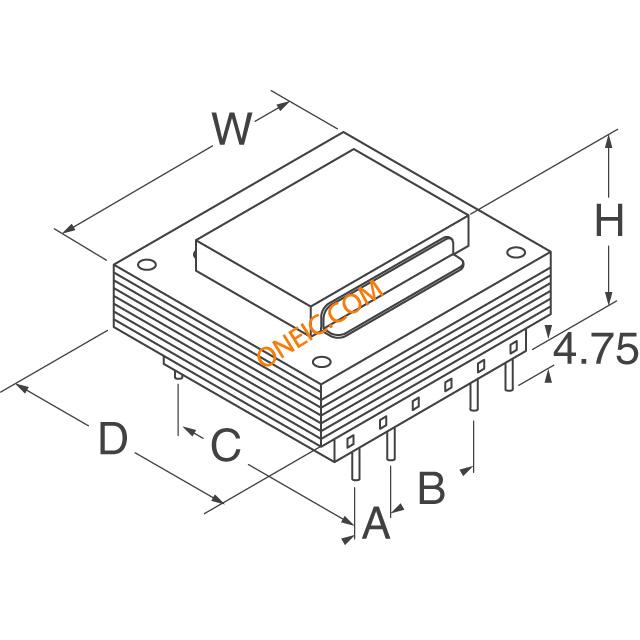

| Size / Dimension | 57.15mm L x 47.63mm W |
| Power - Max | 20 VA |
| Current - Output (Max) | Parallel 1.66A, Series 830mA |
| Center Tap | No |
| Standard Package | 1 |
| Type | Laminated Core |
| Voltage - Primary | 115V, 230V |
| Factory Pack Quantity | 20 |
| Product | Power Transformers |
| Product Category | Power Transformers |
| Unit Weight | 1.030 lbs |
| Height | 1.625 in |
| Mounting Style | SMD/SMT |
| Width | 1.875 in |
| Length | 2.25 in |
| Secondary Winding | Dual Secondary Winding |
| Power Rating | 20 VA |
| RoHS | RoHS Compliant |
| Primary Winding | Dual Primary Winding |
