W2S130-AA25-01
AC Fan Ball Bearing 115V 41W/38W 50Hz/60Hz 2800RPM/3250RPM 191.3CFM/223.7CFM 49dB/53dB Flange Mount
廠商型號:
W2S130-AA25-01
芯天下內部編號:
113-W2S130-AA25-01
生產廠商:
ebm-papst
描述:
AC Fan Ball Bearing 115V 41W/38W 50Hz/60Hz 2800RPM/3250RPM 191.3CFM/223.7CFM 49dB/53dB Flange Mount
產品類別:
Thermal Management|Fans and Blowers

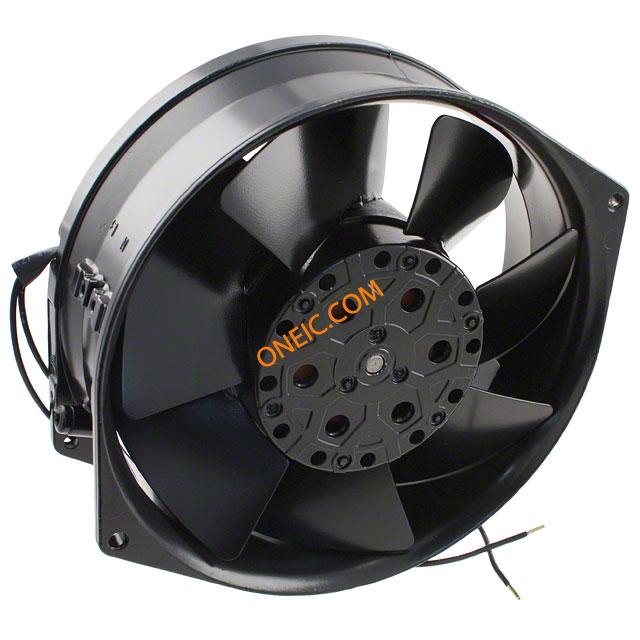

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 172 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Maximum Pressure | 80Pa|120Pa |
| Product Depth | 150 |
| Bearings | Ball |
| Termination | Leads |
| Nominal Speed | 2800|3250 |
| Noise Level | 49|53 |
| Voltage Rating | 115 |
| Product Height | 55 |
| Housing Material | Die-Cast Aluminum |
| Power Rating | 41|38 |
| Maximum Airflow | 191.3|223.7 |
| Mounting | Flange Mount |
| Operating Frequency | 50|60 |
| Fan Rotation | Counter Clockwise |
| Subcategory | Blowers and Fans |
| Lead Time | 112 Days |
| Material - Blade | Steel |
| Noise | 53 dB(A) |
| Current Rating | 0.470A |
| Voltage - Rated | 115VAC |
| Standard Package | 1 |
| Material - Frame | Aluminum |
| Bearing Type | Ball |
| Size / Dimension | Round - 150mm Dia x 55mm W |
| Weight | 2.5 lbs (1.1kg) |
| Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
| Air Flow | 223.6 CFM (6.33m3/min) |
| Fan Type | Tubeaxial |
| Power (Watts) | 38W |
| RPM | 3250 RPM |
| rohs | Lead free / RoHS Compliant |
| Frame Dimensions (mm) | 150 mm x 172 mm x 55 mm |
| Airflow | 223.6 CFM |
| Series | W2S130 |
| Termination Style | Wire Leads |
| Unit Weight | 2.440 lbs |
| Current Type | AC |
| Product Category | Fans |
| Power Rating | 38 W |
| Speed | 3250 RPM |
| RoHS | RoHS Compliant |
| Supply Voltage | 115 V |
| Operating Temperature (Max) | 70C |
| Rad Hardened | No |
| Type | AC Fan |
| Product Length (mm) | 172 mm |
| Product Depth (mm) | 150 mm |
| Product Height (mm) | 55 mm |
| Voltage Rating | 115V |
| Noise Level | 49/53 dB |
| Mounting Style | Flange |
| Operating Frequency | 50/60 Hz |
| Frame Dimensions | :150mm x 55mm |
| Flow Rate - Imperial | :223.6cu.ft/min |
| Flow Rate - Metric | :6.26m3/min |
| Noise Rating | :53dBA |
| Power Connection Type | :Wire Leaded |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, UL, VDE |
| External Depth | :55mm |
| External Diameter | :150mm |
| Fixing Centres | :162mm |
| Fixing Hole Diameter | :4.5mm |
| Lead Length | :330mm |
| Operating Lifetime | :50000h |
| Operating Temperature Max | :65°C |
| Operating Temperature Min | :-30°C |
| Outer Diameter | :150mm |
| Panel Cutout Diameter | :147mm |
| Power Consumption | :39W |
| Weight (kg) | 1.2 |
| Tariff No. | 84145920 |
| AirFlow | 223.6CFM |
| BearingType | Ball |
| Brand/Series | W2S130Series |
| Configuration | Round |
| Dimensions | 5.91x2.17(150x55)In.(mm) |
| Dimensions,Inches | 5.91x2.17In. |
| Dimensions,mm | 150x55mm |
| Direction | ExhaustoverStruts |
| FanType | AC |
| Frequency | 60Hz |
| Material | DiecastAluminum |
| NoiseLevel | 53dBA |
| Power,Rating | 38W |
| PrimaryType | Fans |
| Rotation | CCW |
| Size | 5.91x2.17(150x55)In.(mm) |
| Size,Fan | 5.91x2.17(150x55)In.(mm) |
| Temperature,Operating,Maximum | 80°C |
| Voltage,Rating | 115VAC |
