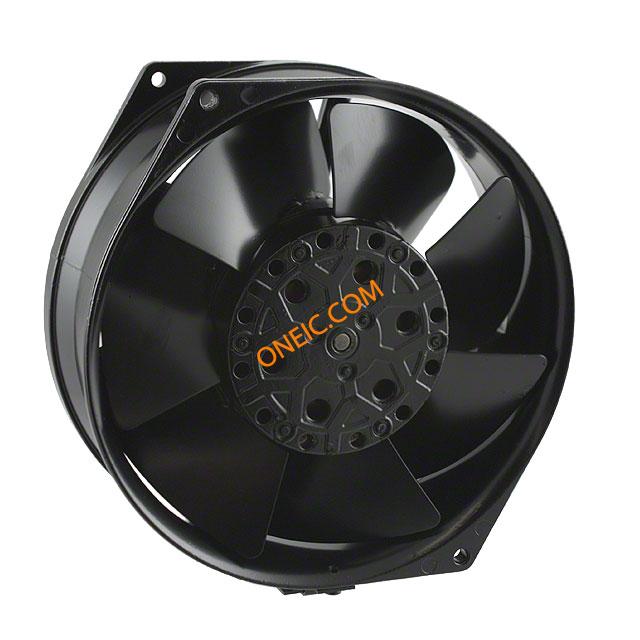

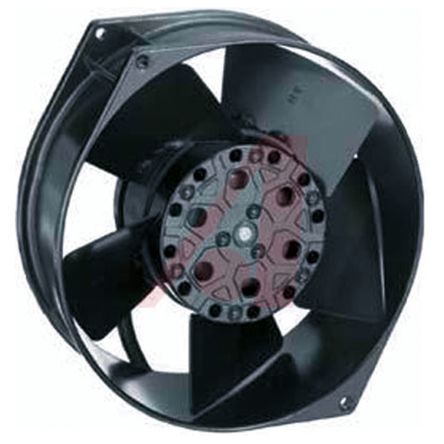

W2S130-AA25-65
115VBB TERM CLASSF 233CFM
廠商型號:
W2S130-AA25-65
芯天下內部編號:
113-W2S130-AA25-65
生產廠商:
ebm-papst
描述:
115VBB TERM CLASSF 233CFM
產品類別:
Thermal Management|Fans and Blowers
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Subcategory | Not Specified |
| Lead Time | 112 Days |
| Material - Blade | Steel |
| Noise | 53 dB(A) |
| Voltage - Rated | 115VAC |
| Standard Package | 10 |
| Material - Frame | Aluminum |
| Bearing Type | Ball |
| Size / Dimension | Round - 150mm Dia x 55mm W |
| Weight | 2.4 lbs (1.1kg) |
| Air Flow | 223.6 CFM (6.33m3/min) |
| Fan Type | Tubeaxial |
| Termination | 2 Wire Leads |
| rohs | Lead free / RoHS Compliant |
| Frame Dimensions (mm) | 150 mm x 55 mm x 172 mm |
| Airflow | 223.6 CFM |
| Series | W2S130 |
| Termination Style | Wire Leads |
| Unit Weight | 2.440 lbs |
| Housing Material | Aluminum |
| Current Type | AC |
| Product Category | Blowers |
| Power Rating | 38 W |
| RoHS | No |
| Supply Voltage | 115 V |
| AirFlow | 224CFM |
| BearingType | Ball |
| Brand/Series | W2S130Series |
| Configuration | Round |
| Dimensions | 5.91x2.17(150x55)In.(mm) |
| Dimensions,Inches | 5.91x2.17In. |
| Dimensions,mm | 150x55mm |
| Direction | ExhaustoverStruts |
| FanType | AC |
| Frequency | 60Hz |
| NoiseLevel | 53dBA |
| NoiseRating | 53dBA |
| PrimaryType | Fans |
| Size | 5.91x2.17(150x55)In.(mm) |
| Size,Fan | 5.91x2.17(150x55)In.(mm) |
| Type | Round |
| Voltage,Rating | 115VAC |
| 系列 | W2S130 |
| 電源電壓 | 115 V 交流 |
| 交流或直流操作 | 交流 |
| 風扇速度 | 3250rpm |
| 軸承類型 | 滾珠軸承 |
| 高度 | 172mm |
| 噪聲水平 | 53dB |
| 功耗 | 41W |
| 尺寸 | 172 x 55mm |
| 深度 | 55mm |
| 彎曲方向 | 向后 |
| 直徑 | 172mm |
| 氣流量 | 380m3/h |
| 葉片直徑 | 130mm |
