09140006258

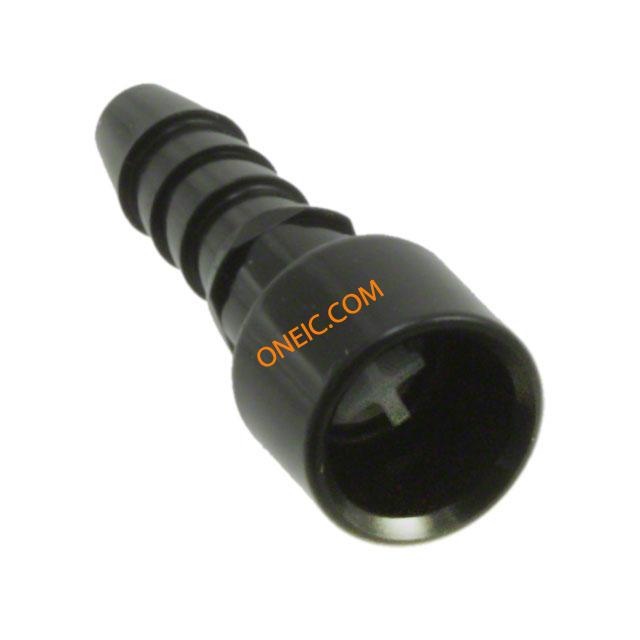

Heavy Duty Power Connectors HAN CONTACT 4 mm WITH VALVE
廠商型號:
09140006258
芯天下內部編號:
479-09140006258
生產廠商:
HARTING
描述:
Heavy Duty Power Connectors HAN CONTACT 4 mm WITH VALVE
產品類別:
Connectors|Power Connectors|Heavy Duty Power Connector Accessories
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 23 |
| EU RoHS | Compliant |
| Type | Insert |
| Connection Size | 0.157 |
| Connection Type | Tube Fitting/Female |
| Packaging | Bulk |
| Standard Package | 1 |
| Pin or Socket | Socket Module |
| rohs | Lead free / RoHS Compliant |
| Accessory Type | Contact |
| CAD Drawing | 3D CAD Model |
| Gender | Female |
| Number of Contacts | 1 |
| Factory Pack Quantity | 10 |
| Product Category | Heavy Duty Power Connectors |
| Insert / Contact Gender | Female |
| Series | Han Pneumatic |
| Part # Aliases | 000 09 09-14-000-6258 14 6258 |
| Product Type | Contacts |
| RoHS | RoHS Compliant |
| Connector | contact |
| Max working pressure | 8bar |
| Multiplicity | 1 |
| Connector type | female |
| Gross weight | 0.9 g |
| Connectors application | ?4mm pipe |
| Connector variant | with cut-off valve |
| Connector series | Han Modular Pneumatic |
| Collective package [pcs] | 3 |
| spg | 3 |
| 連接器類型 | 母座 |
| 系列 | Han Modular |
| 附件類型 | 氣動觸點 |
| CAD 繪圖 | 3D CAD 模型 |
| 觸點數目 | 1 |
| 范圍 | Han 氣動 |
