09140010301
Connector Accessories 1 POS Housing Metal
廠商型號:
09140010301
芯天下內部編號:
479-09140010301
生產廠商:
Harting Technology Group
描述:

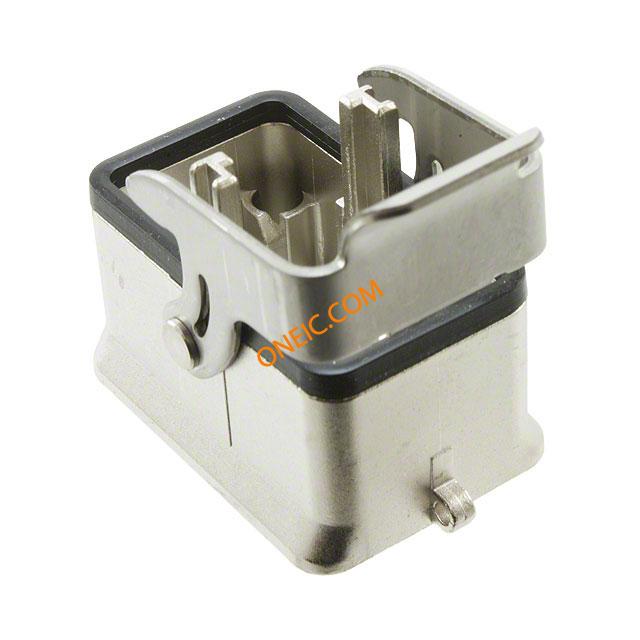

Connector Accessories 1 POS Housing Metal
產品類別:
Connectors|Power Connectors|Heavy Duty Power Connector Accessories
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Depth | 34.6 |
| EU RoHS | Compliant |
| Type | Housing |
| Style | Bottom Entry |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Features | Grounding Terminal |
| Housing Material | Zinc, Die Cast |
| Connector Type | Base - Panel Mount |
| Lock Location | Central Locking Clip on Base Bottom |
| Size / Dimension | 1.929" L x 1.378" W x 1.059" H (49.00mm x 35.00mm x 26.90mm) |
| Packaging | Bulk |
| Standard Package | 1 |
| Housing Finish | Nickel |
| Operating Temperature | -40°C ~ 125°C |
| rohs | Lead free / RoHS Compliant |
| CAD Drawing | 3D CAD Model |
| Factory Pack Quantity | 2 |
| Product Category | Heavy Duty Power Connectors |
| Hood Orientation | Vertical |
| Series | Han Modular Compact |
| Part # Aliases | 001 0301 09 09-14-001-0301 14 |
| Product Type | Housings |
| RoHS | RoHS Compliant |
| Brand/Series | Han-Modular |
| PrimaryType | IndustrialRectangular |
| Size | 1Mod |
| 類型 | 連接器外殼 |
| 系列 | Han Modular |
| CAD 繪圖 | 3D CAD 模型 |
