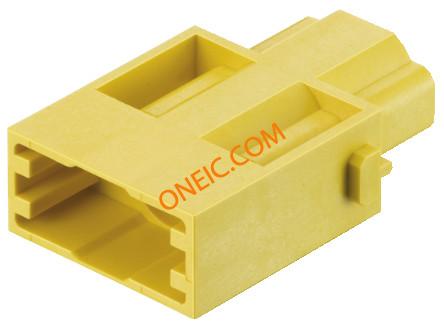

09140013032
HAN GND MODULE, MALE
廠商型號:
09140013032
芯天下內部編號:
479-09140013032
生產廠商:
Harting
描述:
HAN GND MODULE, MALE
產品類別:
Connectors|Power Connectors|Heavy Duty Power Connector Accessories
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Bulk |
| Color | Yellow |
| Gender | Male |
| Standard Package | 1 |
| Termination Style | Crimp; Screw |
| Connector Type | Insert without Contacts |
| Housing Material | Polycarbonate (PC) |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Type | Han-Modular? |
| Number of Positions | 1 |
| Accessory Type | Module |
| Current Rating | 16A |
| For Use With | Han GND Series |
| Series | Han GND |
| Voltage Rating | 500 V |
| rohs | Compliant |
| Part # Aliases | 001 09 09-14-001-3032 14 3032 |
| Product Type | Inserts |
| RoHS | RoHS Compliant |
| 連接器類型 | 公插 |
| 系列 | Han Modular |
| 附件類型 | 模塊 |
| 使用于 | Han GND 系列 |
| 額定電流 | 16A |
| 額定電壓 | 500 V |
| 范圍 | Han GND |
