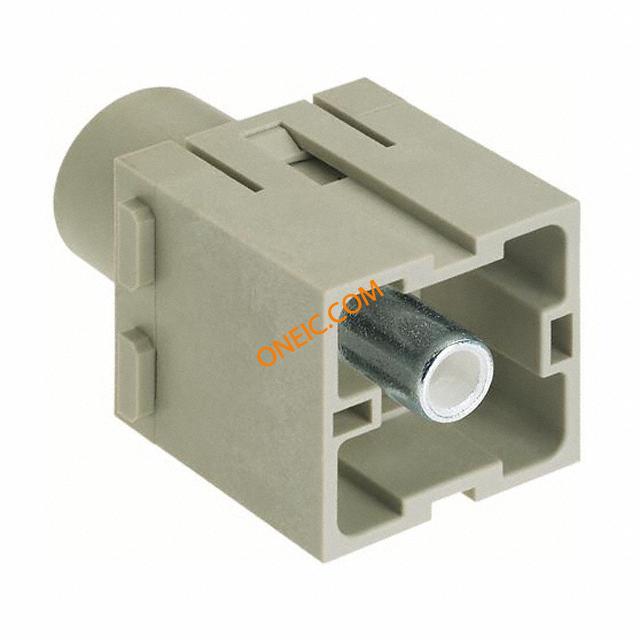

09140012663
HAN 200A AXIAL MOD MALE 25-40
廠商型號:
09140012663
芯天下內部編號:
479-09140012663
生產廠商:
Harting
描述:
HAN 200A AXIAL MOD MALE 25-40
產品類別:
Connectors|Power Connectors|Heavy Duty Power Connectors
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Bulk |
| Current Rating | 200A |
| Voltage Rating | 600V |
| Color | Gray |
| Gender | Male |
| Standard Package | 1 |
| Termination Style | Screw |
| Connector Type | Module |
| Contact Finish | Silver |
| Housing Material | Polycarbonate (PC) |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 1 |
| Contact Material | Copper Alloy |
| Factory Pack Quantity | 2 |
| Product Category | Heavy Duty Power Connectors |
| Number of Positions / Contacts | 1 |
| Wire Gauge Range | 2 |
| Contact Plating | Silver |
| Insert / Contact Gender | Male |
| Part # Aliases | 001 09 09-14-001-2663 14 2663 |
| Product Type | Modules |
| RoHS | RoHS Compliant |
| rohs | RoHS Compliant Part |
| Electrical mounting | screw terminal |
| Connector | module |
| Flammability rating | UL94V-0 |
| Mechanical durability | 500cycles |
| Rated current | 200A |
| Multiplicity | 1 |
| Width in modules | 2 |
| Connector type | male |
| Plating thickness | 3μm |
| Gross weight | 0.07 kg |
| Operating temperature | -40...125°C |
| Connector series | Han Modular 200A |
| Contact plating | silver plated |
| Rated voltage | 1000V |
| Insulator material | polycarbonate |
| Number of pins | 1 |
| Collective package [pcs] | 1 |
| Wire cross section | 25...40mm2 |
| Max contact resistance: | 0.3mΩ |
| spg | 1 |
| Type | CONNECTORS |
| 連接器類型 | Module |
| 系列 | Han-Modular? |
| 端接樣式 | Screw |
| 位置數 | 1 |
| 操作溫度 | -40°C ~ 125°C |
| 公母 | Male |
| 額定電流 | 200A |
| 額定電壓 | 600V |
| 系列號 | 0914 |
| 主體向性 | 直 |
| 觸點材料 | 銅合金 |
| 類型 | 軸向模塊 |
| 端接方法 | 螺釘 |
| 觸點數目 | 1 |
| 觸點電鍍 | 銀 |
