112420
RF Connectors BNC BULKHEAD PLUG 50 OHM BR/DL
廠商型號:
112420
芯天下內部編號:
36-112420
生產廠商:
Amphenol Connex
描述:
RF Connectors BNC BULKHEAD PLUG 50 OHM BR/DL
產品類別:
Connectors|RF / Coaxial Connectors & Accessories|RF / Coaxial Connectors

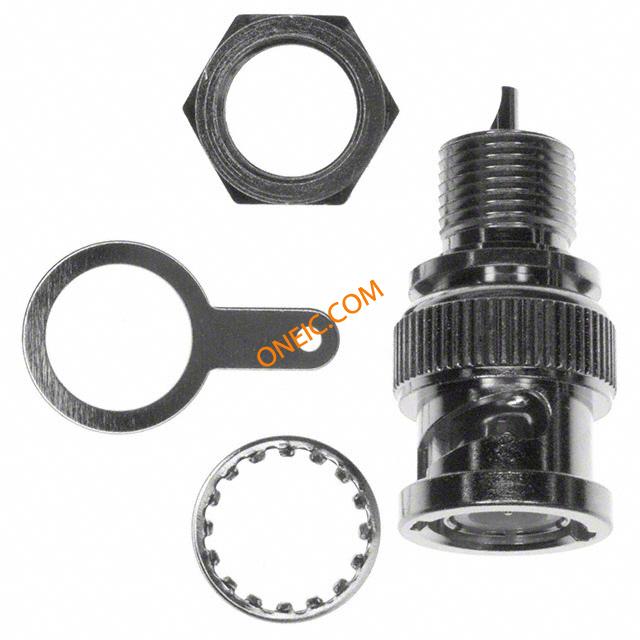

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 30.2 |
| EU RoHS | Compliant |
| Body Plating | Nickel |
| Terminate To | Coaxial Cable |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Termination Method | Solder Pot |
| Impedance | 50 |
| Body Material | Brass |
| Operating Frequency | 0 to 4G |
| Contact Plating | Gold |
| Gender | PL |
| Contact Material | Brass |
| Type | BNC |
| Insulation Material | Delrin |
| Product Diameter | 14.5 |
| Center Contact Material | Brass |
| Connector Style | BNC |
| Body Finish | Nickel |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Center Contact Plating | Gold |
| Shield Termination | Solder |
| Frequency - Max | 4GHz |
| Housing Color | Silver |
| Standard Package | 1 |
| Impedance | 50 Ohm |
| Voltage Rating | 500V |
| Connector Type | Plug, Male Pin |
| Fastening Type | Bayonet Lock |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Contact Termination | Solder Cup |
| Packaging | Bulk |
| Other Names | ACX1407 |
| rohs | Lead free / RoHS Compliant |
| Body Style | :Straight Bulkhead Plug |
| Coaxial Termination | :Solder |
| Coaxial Cable Types | :- |
| Series | :- |
| Weight (kg) | 0 |
| Tariff No. | 85366910 |
| Angle | Straight |
| Application | Commercial |
| Finish, Housing | Nickel |
| Material, Contact | Brass |
| Material, Housing | Brass |
| Mating Type | Bayonet |
| Primary Type | BNC |
| Termination | Solder |
