112424
Conn BNC F 0Hz to 4GHz 50Ohm Solder Pot ST Panel Mount Gold
廠商型號:
112424
芯天下內部編號:
36-112424
生產廠商:
amphenol connex
描述:
Conn BNC F 0Hz to 4GHz 50Ohm Solder Pot ST Panel Mount Gold
產品類別:
Interconnect|Connector RF

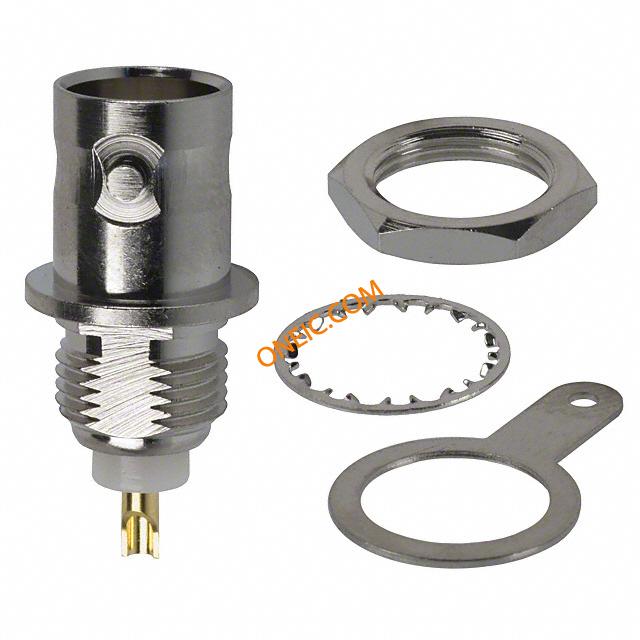

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | BNC |
| Gender | F |
| Impedance | 50 Ohm |
| Operating Frequency | 0 to 4 GHz |
| Termination Method | Solder Pot |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Family | 112424 |
| Terminate To | Coaxial Cable |
| Standard Package | Bag |
| Product Length | 26.7 |
| EU RoHS | Compliant |
| Body Plating | Nickel |
| Impedance | 50 |
| Body Material | Brass |
| Operating Frequency | 0 to 4G |
| Insulation Material | Delrin |
| Product Diameter | 12.7 |
| Center Contact Material | Phosphor Bronze |
| Connector Style | BNC |
| Body Finish | Nickel |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Center Contact Plating | Gold |
| Shield Termination | Solder |
| Frequency - Max | 4GHz |
| Housing Color | Silver |
| Voltage Rating | 500V |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Features | Extended Insulation |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Contact Termination | Solder Cup |
| Packaging | Bulk |
| Other Names | ACX1046 |
| rohs | Lead free / RoHS Compliant |
| Polarity | Standard |
| Termination Style | Solder Cup |
| Part # Aliases | 319-0041 99H4381 |
| Product | Connectors |
| Product Category | RF Connectors / Coaxial Connectors |
| Operating Temperature Range | - 40 C to + 155 C |
| Unit Weight | 0.247623 oz |
| Maximum Frequency | 4 GHz |
| RF Series | BNC |
| Mating Cycles | 500 |
| RoHS | RoHS Compliant By Exemption |
| Orientation | Straight |
| Coupling Mechanism | Bayonet |
| Body Style | :Straight Bulkhead Jack |
| Coaxial Termination | :Solder |
| Coaxial Cable Types | :- |
| Frequency Max | :4GHz |
| Connector Mounting | :Panel |
| Series | :- |
| Weight (kg) | 0.009 |
| Tariff No. | 85366910 |
| Angle | Straight |
| Application | Commercial |
| Cable Type | RG-174, RG-188, RG-316 |
| Finish, Housing | Nickel |
| Material, Contact | Phosphor Bronze |
| Material, Dielectric | Delrin |
| Material, Housing | Brass |
| Mating Type | Bayonet |
| Primary Type | BNC |
| Termination | Solder |
| Voltage, Rating | 500 V |
