112421
Conn BNC PL 0Hz to 1GHz 75Ohm Solder Pot ST Panel Mount Gold
廠商型號:
112421
芯天下內部編號:
36-112421
生產廠商:
amphenol connex
描述:
Conn BNC PL 0Hz to 1GHz 75Ohm Solder Pot ST Panel Mount Gold
產品類別:
Interconnect|Connector RF

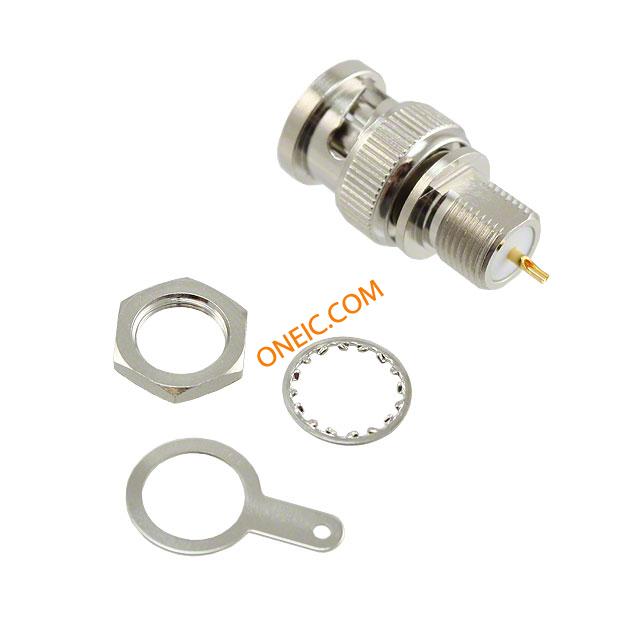

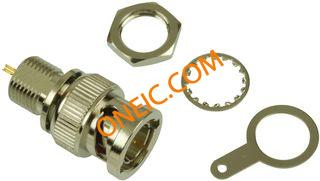

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | BNC |
| Gender | PL |
| Impedance | 75 Ohm |
| Operating Frequency | 0 to 1 GHz |
| Termination Method | Solder Pot |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Contact Material | Brass |
| Contact Plating | Gold |
| Family | 112421 |
| Terminate To | Coaxial Cable |
| Standard Package | Bag |
| Product Length | 30.2 |
| EU RoHS | Compliant |
| Body Plating | Nickel |
| Impedance | 75 |
| Body Material | Brass |
| Operating Frequency | 0 to 1G |
| Insulation Material | Polytetrafluoroethylene |
| Product Diameter | 14.5 |
| Center Contact Material | Brass |
| Connector Style | BNC |
| Body Finish | Nickel |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold |
| Shield Termination | Solder |
| Frequency - Max | 4GHz |
| Housing Color | Silver |
| Voltage Rating | 500V |
| Connector Type | Plug, Male Pin |
| Fastening Type | Bayonet Lock |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Contact Termination | Solder Cup |
| Packaging | Bulk |
| Other Names | ACX1848 |
| rohs | Lead free / RoHS Compliant |
| Polarity | Standard |
| Termination Style | Solder Cup |
| Product | Connectors |
| Product Category | RF Connectors / Coaxial Connectors |
| Operating Temperature Range | - 65 C to + 165 C |
| Unit Weight | 0.463359 oz |
| Maximum Frequency | 4 GHz |
| RF Series | BNC |
| Mating Cycles | 500 |
| RoHS | RoHS Compliant By Exemption |
| Orientation | Straight |
| Coupling Mechanism | Bayonet |
| Body Style | :Straight Bulkhead Plug |
| Coaxial Termination | :Solder |
| Coaxial Cable Types | :- |
| Frequency Max | :1GHz |
| Weight (kg) | 0 |
| Tariff No. | 85366910 |
