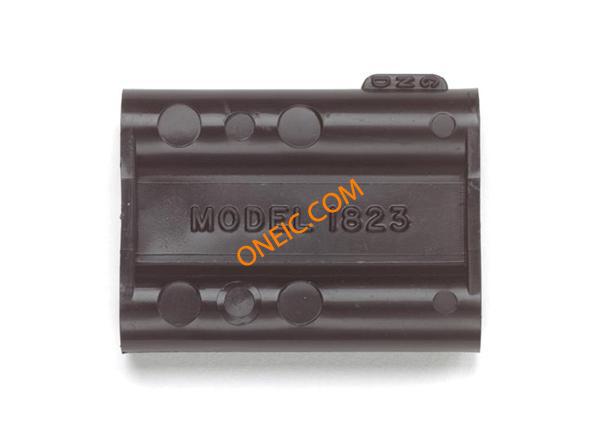

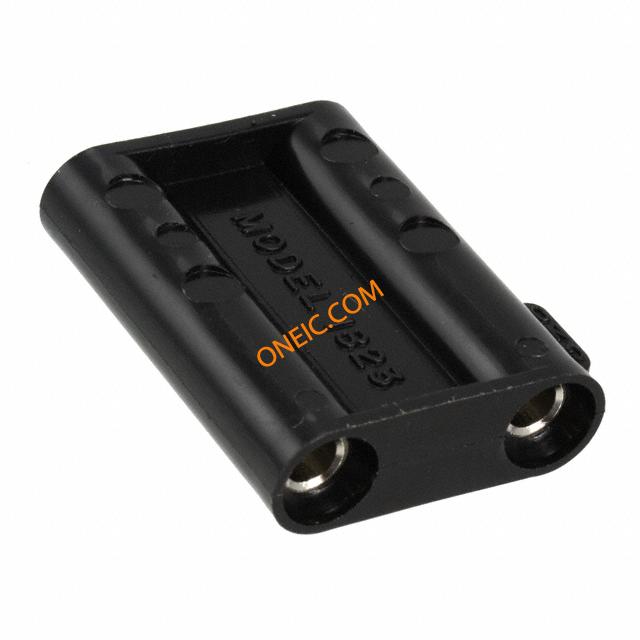

1823-0
Test Plugs & Test Jacks DBL BAN SPLICE BLK
廠商型號:
1823-0
芯天下內部編號:
297-1823-0
生產廠商:
Pomona Electronics
描述:
Test Plugs & Test Jacks DBL BAN SPLICE BLK
產品類別:
Test & Measurement|Test Equipment Accessories|Test Plugs & Test Jacks
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 38.1 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 55 |
| Gender | F/F |
| Body Orientation | Straight |
| Product Height | 9.65 |
| Housing Material | Polypropylene |
| Number of Ports | 2 |
| Housing Color | Black |
| Contact Plating | Nickel |
| Number of Contacts | 2/2 |
| Maximum Current Rating | 15 |
| Type | Banana Adapter |
| Contact Material | Brass |
| Current Rating | 15A |
| Convert To (Adapter End) | Banana Jack, Double |
| Color | Black |
| Convert From (Adapter End) | Splice |
| Operating Temperature | 55°C |
| Standard Package | 5 |
| Length - Total | 1.500" (38.10mm) |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 2 |
| Product Category | Test Plugs & Test Jacks |
| Voltage Rating | 5 kV |
| Length | 1.55 in |
| Equipment Type | Banana Jacks |
| Insulation Material | Polypropylene |
| Insulation | Insulated |
| Part # Aliases | 1937244 |
| RoHS | RoHS Compliant |
| Series | :1823 |
| Contact Termination | :- |
| Connector Color | :Black |
| Connector Mounting | :- |
| Weight (kg) | 0.014 |
| Tariff No. | 85366910 |
| Brand/Series | 1823Series |
| Current,Rating | 15A |
| Diameter,MountingHole | 0.166" |
| Diameter,Terminal | 0.166in. |
| Height | 0.38in. |
| InsulationMaterial | Polypropylene |
| InsulationType | Insulated |
| Length,Terminal | 1.5in. |
| Material,Body | Brass,Alloy360 |
| NumberofContacts | 2 |
| PinSpacing | 0.75" |
| PrimaryType | Banana |
| Temperature,Operating,Maximum | 55°C |
| Voltage,Rating | 5000VDC |
