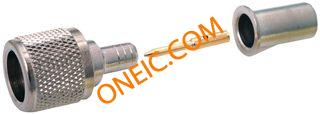

182311
Conn UHF PL Crimp ST Cable Mount
廠商型號:
182311
芯天下內部編號:
36-182311
生產廠商:
amphenol connex
描述:
Conn UHF PL Crimp ST Cable Mount
產品類別:
Interconnect|Connector RF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | UHF |
| Gender | PL |
| Termination Method | Crimp |
| Mounting | Cable Mount |
| Body Orientation | Straight |
| Family | 182311 |
| Terminate To | Coaxial Cable |
| Standard Package | Bag |
| Center Contact Material | Brass |
| Connector Style | UHF |
| Body Finish | Nickel |
| Dielectric Material | Phenol Formaldehyde (Phenolic) |
| Center Contact Plating | Silver |
| Shield Termination | Crimp |
| Frequency - Max | 2.5GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Cable Group | RG-214 |
| Voltage Rating | 500V |
| Connector Type | Plug, Male Pin |
| Body Material | Brass |
| Fastening Type | Threaded |
| Mounting Type | Free Hanging (In-Line) |
| Packaging | Bulk |
| Contact Termination | Crimp |
| rohs | Lead free / RoHS Compliant |
| Polarity | Standard |
| Termination Style | Cable - Crimp |
| Product | Connectors |
| Product Category | RF Connectors / Coaxial Connectors |
| Operating Temperature Range | - 65 C to + 165 C |
| Unit Weight | 0.760859 oz |
| Maximum Frequency | 2.5 GHz |
| RF Series | UHF |
| Contact Plating | Silver |
| Mating Cycles | 500 |
| RoHS | RoHS Compliant By Exemption |
| Orientation | Straight |
| Cable Type | RG-214, RG-225 |
| Coupling Mechanism | Threaded |
| Contact Material | Brass |
| Body Style | :Straight Plug |
| Coaxial Termination | :Crimp |
| Coaxial Cable Types | :RG214 |
| Frequency Max | :500MHz |
| Series | :- |
| Weight (kg) | 0 |
| Tariff No. | 85366910 |
| Weight (g): | 12.00000 |
