182317
RF Connectors UHF STRAIGHT BLKHEAD JACK RG316/174 MINI
廠商型號:
182317
芯天下內部編號:
36-182317
生產廠商:
Amphenol Connex
描述:
RF Connectors UHF STRAIGHT BLKHEAD JACK RG316/174 MINI
產品類別:
Connectors|RF Interconnects|RF Connectors / Coaxial Connectors

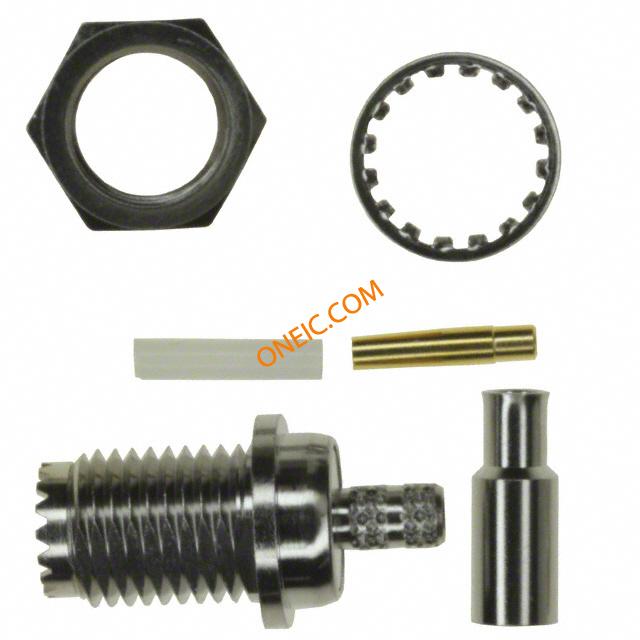

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Center Contact Material | Phosphor Bronze |
| Operating Temperature | -55°C ~ 85°C |
| Connector Style | UHF, Mini |
| Body Finish | Nickel |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold |
| Shield Termination | Crimp |
| Frequency - Max | 2.5GHz |
| Housing Color | Silver |
| Standard Package | 1 |
| Impedance | 50 Ohm |
| Cable Group | RG-174, 316, LMR-100 |
| Voltage Rating | 335V |
| Connector Type | Jack, Female Socket |
| Body Material | Brass |
| Fastening Type | Threaded |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Contact Termination | Crimp |
| Packaging | Bulk |
| Other Names | ACX1531 |
| Polarity | Standard |
| Termination Style | Cable - Crimp |
| Part # Aliases | 319-0493 |
| Product | Connectors |
| Product Category | RF Connectors / Coaxial Connectors |
| Maximum Frequency | 2.5 GHz |
| RF Series | UHF |
| Contact Plating | Gold |
| Operating Temperature Range | - 65 C to + 165 C |
| Gender | Jack |
| Mating Cycles | 500 |
| RoHS | RoHS Compliant By Exemption |
| Orientation | Straight |
| Cable Type | RG-174, RG-188A, RG-316, Belden 7805A |
| Coupling Mechanism | Threaded |
| Contact Material | Phosphor Bronze |
| Angle | Straight |
| Application | Commercial |
| Finish, Housing | Nickel |
| Material, Contact | Phosphor Bronze |
| Material, Dielectric | TFE |
| Material, Housing | Brass |
| Mating Type | Threaded |
| Primary Type | Mini-UHF |
| Termination | Crimp |
| Type | Cable Jack |
| Voltage, Rating | 500 V |
| rohs | RoHS Compliant Part |
