2866213

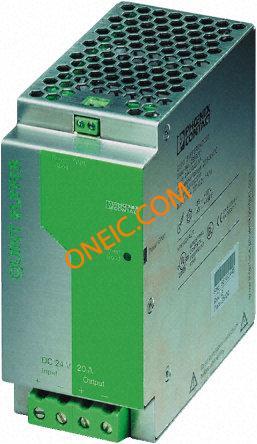

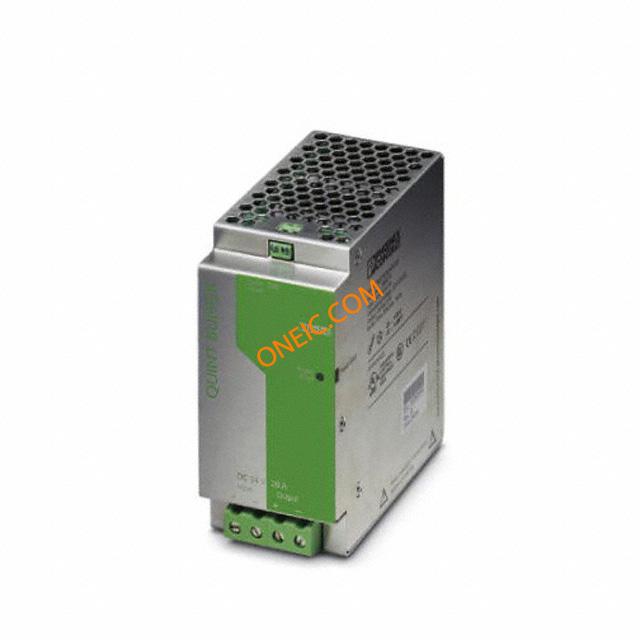

UBS DC Din Rail 24VDC
廠商型號:
2866213
芯天下內部編號:
295-2866213
生產廠商:
PHOENIX CONTACT
描述:
UBS DC Din Rail 24VDC
產品類別:
Power Supplies - External/Internal (Off-Board)|DC DC Converters|Quint
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Typical Input Voltage | 24VDC |
| Maximum Operating Temperature | 70 |
| Output Receptacles Type | Screw Terminal Block |
| Minimum Operating Temperature | -25 |
| Package Height | 64 |
| Mounting | DIN Rail |
| Input Voltage Range | 22.5VDC to 30VDC |
| Backup Time | 0.67 |
| Input Power Factor Correction | No |
| UPS Style | Din Rail |
| UPS Type | DC |
| Input Connector Type | Screw Terminal Block |
| Agency Approvals | cUL/cULus/DNV/GL/GOST/UL |
| Package Width | 125 |
| Output Voltage | 24VDC |
| PCB | 5 |
| EU RoHS | Compliant |
| Battery Recharge Time | 0.0075(Max) |
| Package Length | 130 |
| Pin Count | 5 |
| Efficiency | 95(Min) |
| Industry Aliases | QUINT-BUFFER/24DC/20 |
| Subcategory | Uninterruptible Power Supply |
| Lead Time | 20 Days |
| Number of Outputs | 1 |
| Mounting Type | DIN Rail |
| Standard Package | 1 |
| Output - 1 @ Current (Max) | 24 VDC @ 20A |
| Package / Case | Module |
| Packaging | Bulk |
| Size / Dimension | 4.92" L x 2.52" W x 5.12" H (125mm x 64mm x 130mm) |
| Efficiency | 95% |
| Power (Watts) | 480W |
| Approvals | cUL, EN, UL, VDE |
| Voltage - Input | 24V |
| Output | 24V |
| Operating Temperature | -25°C ~ 70°C |
| Type | Isolated |
| Power (Watts) - Max | 480W |
| rohs | Lead free / RoHS Compliant |
| Current Rating | 20.6A |
| Depth | 125mm |
| Dimensions | 130 x 64 x 125mm |
| Input Voltage | 24V dc |
| Length | 130mm |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
| Weight | 1kg |
| Width | 64mm |
| Factory Pack Quantity | 1 |
| Output Voltage-Channel 1 | 24 V |
| Product Category | UPS - Uninterruptible Power Supplies |
| Series | QUINT-BUFFER |
| Unit Weight | 2.205 lbs |
| Number of Outlets | 1 |
| Runtime-Full Load | 0.2 s |
| Mounting Style | DIN Rail |
| Data Line Protection | Y |
| Output Voltage Rating | 24 V |
| Tradename | QUINT POWER |
| Runtime-Half Load | 4 s |
| Power Rating | 480 W |
| RoHS | RoHS Compliant |
| Brand/Series | QUINT |
| InputType | ScrewTerminals |
| MountingType | HorizontalDINRail |
| Operation | Switching |
| OutputType | ScrewTerminals |
| PhoenixPartNumber | QUINT-BUFFER/24DC/20 |
| Voltage,Output | 240VDC |
| Voltage,Supply | 24VDC |
| 最高溫度 | +70°C |
| 輸入電壓 | 24V 直流 |
| 重量 | 1kg |
| 最低溫度 | -25°C |
| 安裝類型 | DIN 導軌 |
| 長度 | 130mm |
| 額定電流 | 20.6A |
| CAD 繪圖 | 3D CAD 模型 |
| 深度 | 125mm |
| 類型 | 直流 |
| 型號 | Quint DC |
| 寬度 | 64mm |
| 輸出電壓 | 24V 直流 |
| 尺寸 | 130 x 64 x 125mm |
