2866268

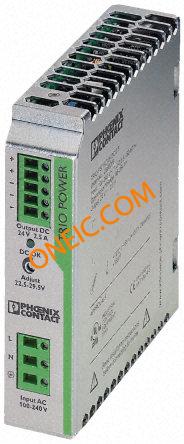

AC/DC Power Supply Single-OUT 24V 2.5A 60W
廠商型號:
2866268
芯天下內部編號:
295-2866268
生產廠商:
PHOENIX CONTACT
描述:
AC/DC Power Supply Single-OUT 24V 2.5A 60W
產品類別:
Power Supplies - External/Internal (Off-Board)|AC DC Converters|Trio
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Number of Outputs | 1 |
| Style | Enclosed |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Output Voltage | 24 |
| Efficiency | 85(Typ) |
| Maximum Output Current | 2.5 |
| Input Frequency | 45 to 65 |
| Maximum Output Power | 60 |
| Minimum Operating Temperature | -25 |
| Type | Switching |
| Input Voltage | 85 to 264 |
| Industry Aliases | TRIO-PS/1AC/24DC/2.5 |
| Subcategory | AC to DC Power Supply |
| Lead Time | 28 Days |
| Mounting Type | DIN Rail |
| Applications | Commercial |
| Approvals | cUL, GL, UL |
| Power (Watts) - Max | 60W |
| Voltage - Output | 24V |
| Size / Dimension | 4.53" L x 1.26" W x 5.12" H (115.0mm x 32.0mm x 130.0mm) |
| Efficiency | 86% |
| Power (Watts) | 60W |
| Standard Package | 1 |
| Output - 1 @ Current (Max) | 24 VDC @ 2.5A |
| Voltage - Input | 100 ~ 240 VAC |
| Operating Temperature | -25°C ~ 70°C |
| Power Supply Type | Switching (Closed Frame) |
| rohs | Lead free / RoHS Compliant |
| Depth | 130mm |
| Dimensions | 115 x 32 x 130mm |
| Electrical Phase | 1 |
| Input Voltage | 85 → 264V ac |
| Length | 115mm |
| Line Regulation | ±0.1% |
| Load Regulation | ±1% |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
| MTBF | 500000h |
| Output Current | 2.5A |
| Output Voltage | 24V dc |
| Ripple And Noise | 30mV Pk-Pk |
| Weight | 0.5kg |
| Width | 32mm |
| Product | Switching Supplies |
| Product Category | DIN Rail Power Supplies |
| Factory Pack Quantity | 1 |
| Commercial/Medical | Commercial |
| Series | TRIO-PS |
| Output Power Rating | 60 W |
| Output Voltage-Channel 1 | 24 VDC |
| Unit Weight | 1.102 lbs |
| Mounting Style | DIN Rail |
| Isolation Voltage | 4 kV |
| RoHS | RoHS Compliant |
| Tradename | TRIO POWER |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 2.5 A |
| Brand/Series | TRIOSeries |
| Configuration | Enclosed |
| MountingType | DINRail |
| NumberofOutputs | 1 |
| Operation | Switching |
| Output | 24VDC@2.5A |
| PhoenixPartNumber | TRIO-PS/1AC/24DC/2.5 |
| Power,Output | 60W |
| PrimaryType | AC-DC |
| SpecialFeatures | HighDielectricStrength |
| Voltage,Input | 85-264VAC |
| Voltage,Output | 24VDC |
| 最高溫度 | +70°C |
| 最大輸入電壓 | 264V 交流 |
| 系列 | TRIO |
| 效能 | 86% |
| 最低溫度 | -25°C |
| 安裝類型 | DIN 導軌 |
| 負載調節 | ±1% |
| 輸出電流 | 2.5 A |
| 交流或直流輸出電壓 | 直流 |
| 深度 | 130mm |
| 類型 | 開關模式 |
| 最大輸出電壓 | 29.5V 直流 |
| 電位相 | 1 |
| 紋波和噪聲 | 30mV 峰峰值 |
| 最小輸出電壓 | 22.5V 直流 |
| 平均故障間隔時間 | 500000h |
| 尺寸 | 115 x 32 x 130mm |
| 線路調節 | ±0.1% |
| 輸入頻率范圍 | 45 → 65Hz |
| 交流或直流輸入電壓 | 交流 |
| 重量 | 0.5kg |
| 寬度 | 32mm |
| 最小輸入電壓 | 85V 交流 |
