2866297

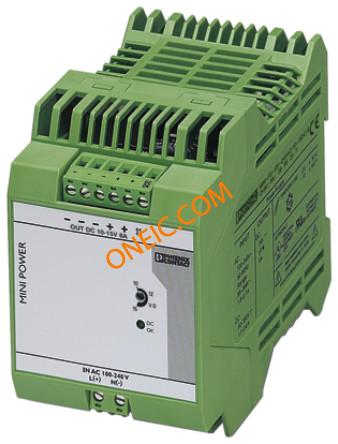

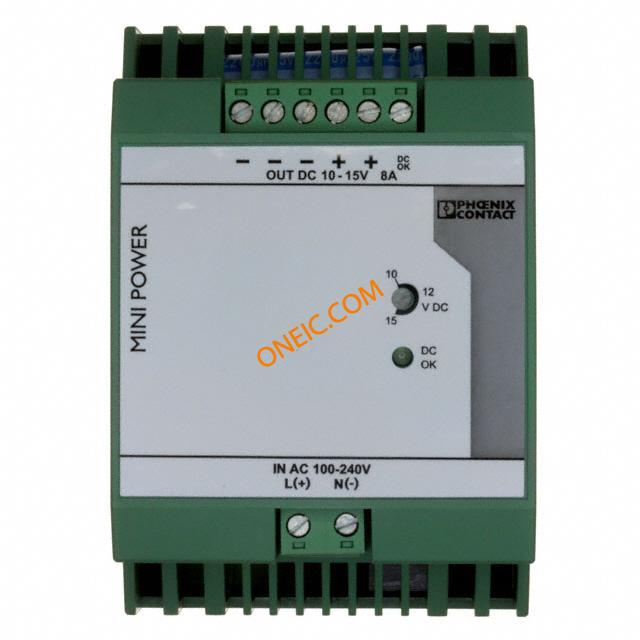

DIN Rail Power Supplies 100-240AC 10-15DC 8A
廠商型號:
2866297
芯天下內部編號:
295-2866297
生產廠商:
Phoenix Contact
描述:
DIN Rail Power Supplies 100-240AC 10-15DC 8A
產品類別:
Power Supplies - External/Internal (Off-Board)|AC DC Converters|Mini
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Number of Outputs | 3 |
| Style | Enclosed |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Output Voltage | 12|10|15 |
| Efficiency | 88(Min) |
| Maximum Output Current | 8|6.6 |
| Input Frequency | 45 to 65 |
| Maximum Output Power | 100 |
| Minimum Operating Temperature | -25 |
| Type | Switching |
| Input Voltage | 85 to 264 |
| Industry Aliases | MINI-PS-100-240AC/10-15DC/8 |
| Subcategory | AC to DC Power Supply |
| Lead Time | 28 Days |
| Mounting Type | DIN Rail |
| Applications | Commercial |
| Approvals | cUL, UL |
| Power (Watts) - Max | 120W |
| Voltage - Output | 10 ~ 15V |

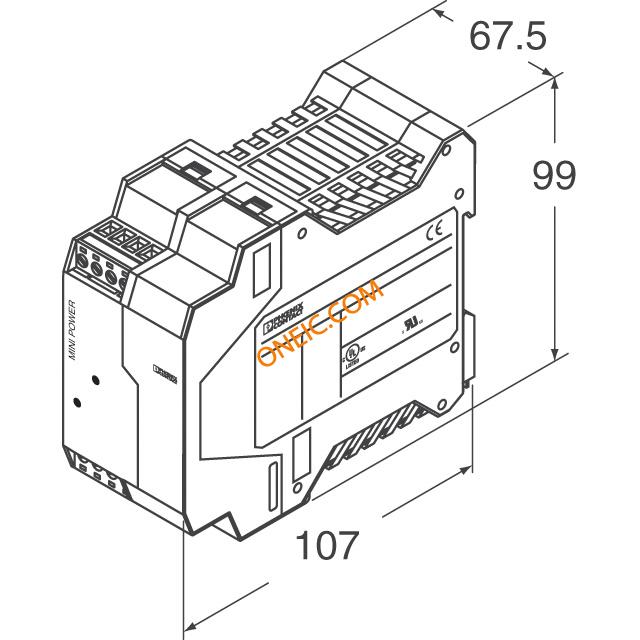

| Size / Dimension | 4.21" L x 2.66" W x 3.90" H (107.0mm x 67.5mm x 99.0mm) |
| Efficiency | 88% |
| Power (Watts) | 120W |
| Standard Package | 1 |
| Output - 1 @ Current (Max) | 10 ~ 15 VDC @ 8A |
| Voltage - Input | 100 ~ 240 VAC |
| Operating Temperature | -25°C ~ 70°C |
| Power Supply Type | Switching (Closed Frame) |
| rohs | Lead free / RoHS Compliant |
| Depth | 99mm |
| Dimensions | 107 x 67.5 x 99mm |
| Input Voltage | 85 → 264 V ac, 90 → 350 V dc |
| Length | 107mm |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
| MTBF | 500000h |
| Output Current | 8A |
| Output Voltage | 12V dc |
| Power Rating | 100W |
| Ripple And Noise | 40mV Pk-Pk |
| Weight | 0.4kg |
| Width | 67.5mm |
| Factory Pack Quantity | 1 |
| Isolation Voltage | 3 kV |
| Part # Aliases | MINI-PS-100-240AC/10-15DC/8 |
| Open Frame/Enclosed | Enclosed |
| Product | Switching Supplies |
| Product Category | DIN Rail Power Supplies |
| Unit Weight | 14.109585 oz |
| Tradename | MINI POWER |
| Output Voltage-Channel 3 | 15 V |
| Output Voltage-Channel 2 | 10 V |
| Output Voltage-Channel 1 | 12 V |
| RoHS | RoHS Compliant |
| Output Current-Channel 2 | 8 A |
| Output Current-Channel 3 | 8 A |
| Output Current-Channel 1 | 8 A |
| Commercial/Medical | Commercial |
| Series | MINI-PS |
| Mounting Style | DIN Rail |
| Output Power Rating | 96 W |
| Brand/Series | MINISeries |
| Configuration | Enclosed |
| Current,Inrush | 15A(Typ.)Surge |
| Current,Rating | 1.8A(For85VAC),0.7A(For264VAC),1.3A(For90VDC),0.4A(For350VDC) |
| Frequency | 45to65Hz |
| Height | 99mm |
| MountingType | DINRail |
| NumberofOutputs | 1 |
| Operation | Switching |
| Output | 12.5VDC@8A |
| PhoenixPartNumber | MINI-PS-100-240AC/10-15DC/8 |
| Power,Output | 100W |
| PrimaryType | AC-DC |
| SpecialFeatures | ReliableStartupofHeavyLoadsDuetoPowerBoost |
| Temperature,Operating,Maximum | 70°C |
| Temperature,Operating,Minimum | -25°C |
| Voltage,Input | 85-264VAC |
| Voltage,Output | 12.5VDC |
| Voltage,Rating | 100to240VAC(Nom.)Input |
