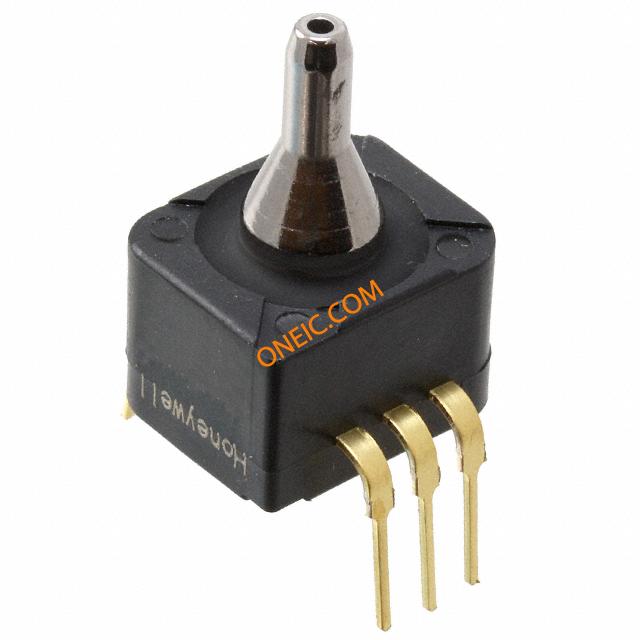

40PC250G2A
Board Mount Pressure Sensors 0 psi to -250 psi 5V AMPLIFIED GAGE PCB
廠商型號:
40PC250G2A
芯天下內部編號:
159-40PC250G2A
生產廠商:
Honeywell
描述:
Board Mount Pressure Sensors 0 psi to -250 psi 5V AMPLIFIED GAGE PCB
產品類別:
Semiconductors|Sensor ICs|Board Mount Pressure Sensors
客戶編號:
規格書:
查看PDF

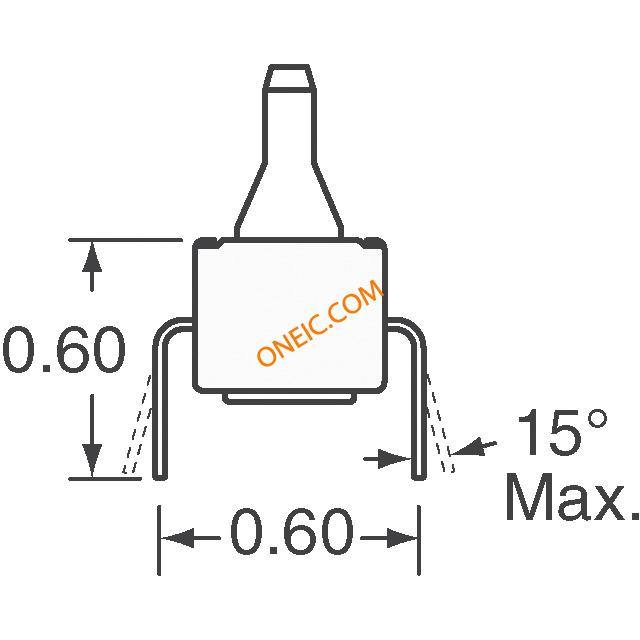

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Board Mount Pressure Sensors |
| RoHS | RoHS Compliant |
| Operating Pressure | 0 psi to 250 psi |
| Pressure Type | Gauge |
| Output Type | Amplified |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 5 V |
| Package / Case | PDIP-6 |
| Port Type | Single Axial Barbless |
| Maximum Operating Temperature | + 125 C |
| Minimum Operating Temperature | - 45 C |
| Port Size | 0.1 in |
| Supply Current | 10 mA |
| Series Name | 40PC |
| Output Calibration | Yes |
| Measurement Type | Gage |
| Pressure Range | 0 psi to 250 psi |
| Maximum Overpressure | 500 psi |
| Response Time | 1 ms max. |
| Signal Conditioning | Amplified |
| Supply Voltage | 5.0 Vdc +/- 0.25 Vdc |
| Subcategory | Board Mount Pressure Sensor |
| Lead Time | 84 Days |
| Output | 0 V ~ 4 V |
| Termination Style | PCB |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Standard Package | 10 |
| Other Names | 480-2640-5 |
| Package/Case | 6-DIP Module |
| rohs | Lead free / RoHS Compliant |
| 最大過載壓力 | 500psi |
| 最高工作溫度 | +125 °C |
| 高度 | 19.8mm |
| 最大工作電源電壓 | 5 V 直流 |
| 安裝類型 | 通孔 |
| 最低工作溫度 | -45 °C |
| 最大工作壓力 | 250psi |
| 最小工作壓力 | 0psi |
| 寬度 | 11.2mm |
| 封裝類型 | DIP |
| 引腳數目 | 6 |
| 長度 | 13.2mm |
| 尺寸 | 13.2 x 11.2 x 19.8mm |
| Vcc(min) | 4.75 V |
| Package | DIP6 |
| Icc | 10 mA |
| Mounting | THT |
| Vcc(max) | 5.25 V |
| Top(max) | 125 °C |
| Packaging | BOX |
| Top(min) | -45 °C |
| Calibrated | no |
| P(max) | 17 bar |
| Automotive | NO |
| Interface | analog |
| T-compensated | yes |
| Amplified | yes |
| P(min) | 0 bar |
| Leadfree Defin | RoHS-conform |
