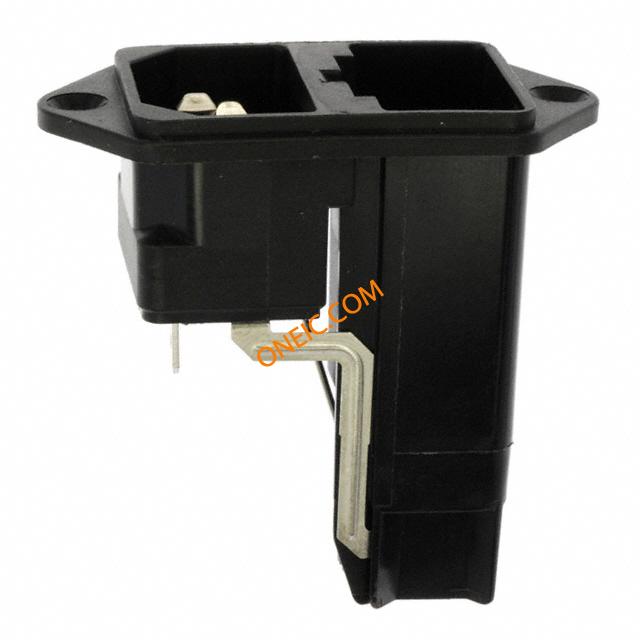

4303.0001
Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port
廠商型號:
4303.0001
芯天下內部編號:
289-4303-0001
生產廠商:
schurter
描述:
Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port
產品類別:
Interconnect|Power Entry Module
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Unfiltered |
| Number of Contacts | 3 |
| Maximum Voltage Rating | 250 Vac |
| Termination Method | Solder Lug |
| Mounting | Flange Mount |
| Connector Type | IEC/EN 60320-1/C14|UL 498|CSA C22.2 |
| Standard Package | Bulk |
| Product Category | AC Power Entry Modules |
| RoHS | RoHS Compliant |
| Filtered | No |
| Product | Inlets |
| Current Rating | 10 A, 13 A |
| Voltage Rating | 125 V, 250 V |
| Housing Material | Thermoplastic |
| Mounting Style | Flange |
| Termination Style | Screw |
| Operating Temperature Range | - 25 C to + 70 C |
| Height | 55 mm |
| Length | 58.3 mm |
| Series | KEC |
| Factory Pack Quantity | 50 |
| Width | 30 mm |
| Unit Pack | 50 |
| MOQ | 50 |
| Subcategory | Power Entry Module |
| Lead Time | 20 Days |
| Features | Fuse Holder |
| Mounting Type | Panel Mount, Screw Hole |
| Current | 10A |
| Fuse Drawer | Sold Separately |
| Voltage | 250V |
| Connector Style | IEC 320-C14 |
| Number of Positions | 3 |
| rohs | Lead free / RoHS Compliant |
| Unit Weight | 0.878322 oz |
| Switch Function | Not Switched |
| Fused | Yes |
| Gender | :Plug |
| Connector Mounting | :Panel |
| Contact Termination | :Quick Connect |
| Body Material | :Thermoplasic |
| Filter Type | :- |
| Weight (kg) | 0.023 |
| Tariff No. | 85369010 |
| Application | Applianceinlet,fuseholder |
| Current,Rating | 10A |
| CutOut,Panel | 27.5×50mm |
| DielectricStrength | >3kVAC(L-N),>4kVAC(L/N-PE)kVAC |
| FilterType | IEC,Inlet |
| Material,Housing | Thermoplastic |
| MountMethod | Front/Rear |
| MountingType | Panel/Screw-On |
| NumberofPoles | 2 |
| Standards | ULListed,CSACertified,VDEApproved |
| Temperature,Operating | -25to+70°C |
| Termination | QuickConnect |
| Thickness,Panel | 8mm |
| Version | Medical |
| Voltage,Rating | 125VAC(UL/CSA),250VAC(IEC)VAC |
| Electrical mounting | 4.8mm connectors |
| Mechanical mounting | flange (2 holes), for panel mounting |
| Connectors features | without fusedrawer |
| Rated current | 10A |
| Multiplicity | 1 |
| Connector type | male |
| Connector | socket |
| Gross weight | 0.03 kg |
| Connector series | KEC |
| Rated voltage | 250V AC |
| Collective package [pcs] | 50 |
| spg | 50 |
