4303.0002

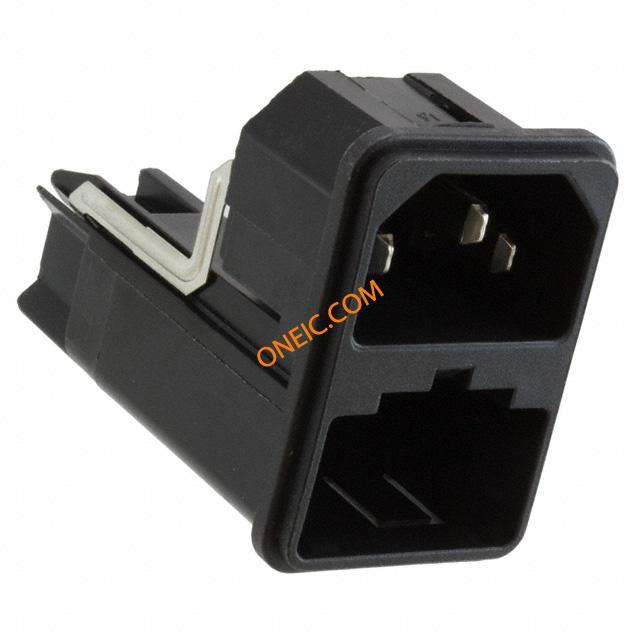

Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port

Thumbnail 4303.0002 Thumbnail 4303.0002 Thumbnail 4303.0002 Thumbnail 4303.0002 Thumbnail 4303.0002
廠商型號: 4303.0002
芯天下內部編號: 289-4303-0002
生產廠商:
schurter schurter
描述: Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port
產品類別: Interconnect|Power Entry Module
客戶編號:
規格書: 查看PDF
瀏覽次數: 4

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Unfiltered
Number of Contacts 3
Maximum Voltage Rating 250 Vac
Termination Method Solder Lug
Mounting Snap-In
Connector Type IEC/EN 60320-1/C14|UL 498|CSA C22.2
Standard Package Bulk
Unit Pack 50
MOQ 50
Subcategory Power Entry Module
Lead Time 49 Days
Features Fuse Holder
Mounting Type Panel Mount, Snap-In
Termination Style Quick Connect - 0.187" (4.7mm)
Current 13A
Fuse Drawer Sold Separately
Voltage 125V
Connector Style IEC 320-C14
Number of Positions 3
rohs Lead free / RoHS Compliant
Factory Pack Quantity 50
Product Inlets
Product Category AC Power Entry Modules
Current Rating 10 A
Housing Material Thermoplastic
Voltage Rating 250 V
Series KEC
Operating Temperature Range - 25 C to + 85 C
Unit Weight 0.867739 oz
Mounting Style Snap In
Switch Function Not Switched
Filtered No
Fused Yes
RoHS RoHS Compliant
Gender :Plug
Connector Mounting :Panel
Contact Termination :Quick Connect
Body Material :Thermoplasic
Filter Type :-
Weight (kg) 0.023
Tariff No. 85366910
Application Applianceinlet,fuseholder
Current,Rating 10A
CutOut,Panel 27.5×41mm
DielectricStrength >3kVAC(L-N),>4kVAC(L/N-PE)kVAC
FilterType IEC,Inlet
Material,Housing Thermoplastic
MountMethod Front
MountingType Panel/Snap-In
NumberofPoles 2
Standards ULListed,CSACertified,VDEApproved
Temperature,Operating -25to+70°C
Termination QuickConnect
Thickness,Panel 1.5mm
Version Medical
Voltage,Rating 125VAC(UL/CSA),250VAC(IEC)VAC
