4303.0031

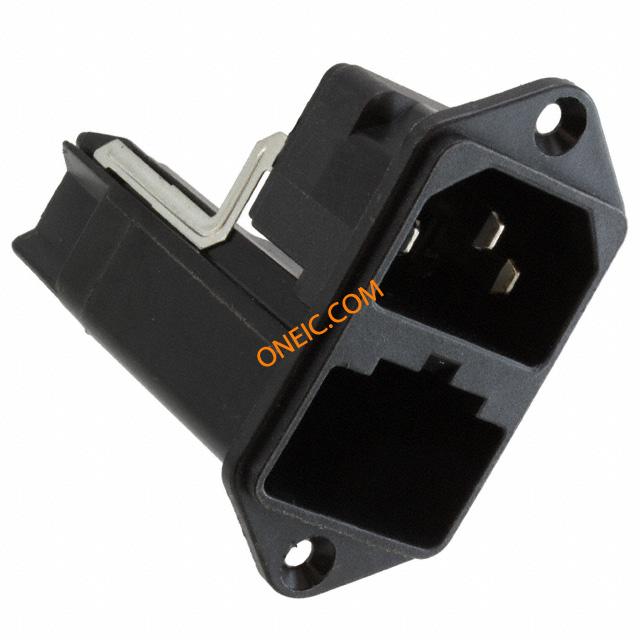

Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port

Thumbnail 4303.0031 Thumbnail 4303.0031 Thumbnail 4303.0031 Thumbnail 4303.0031 Thumbnail 4303.0031
廠商型號: 4303.0031
芯天下內部編號: 289-4303-0031
生產廠商:
schurter schurter
描述: Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port
產品類別: Interconnect|Power Entry Module
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Unfiltered
Number of Contacts 3
Maximum Voltage Rating 250 Vac
Termination Method Solder Lug
Mounting Flange Mount
Connector Type IEC/EN 60320-1/C14|UL 498|CSA C22.2
Standard Package Bulk
Product Inlets
Current Rating 10 A
Voltage Rating 250 VAC
Mounting Style Panel
Termination Style Quick Connect
Operating Temperature Range -25 C to + 70 C
Series KEC
Factory Pack Quantity 50
Life New At Mouser
Unit Pack 50
MOQ 50
Subcategory Power Entry Module
Lead Time 42 Days
Features Fuse Holder
Mounting Type Panel Mount, Screw Hole
Current 13A
Fuse Drawer Sold Separately
Voltage 125V
Connector Style IEC 320-C14
Number of Positions 3
rohs Lead free / RoHS Compliant
Unit Weight 0.881849 oz
Brand/Series 4303Series
CurrentRating 10A(IEC)/13A(UL/CSA)
Current,Rating 10A
CutOut,Panel 27.5×66.5mm
DielectricStrength >3kVAC(L-N),>4kVAC(L/N-PE)
Dimensions 55x58.0x30
Dimensions,Fuse 5x20mm
FilterType IEC,Inlet
ForUseWith Fuse
Gender Male
Material,Body Thermoplastic
Material,Housing Thermoplastic
MountMethod Front/Rear
MountingStyle PanelMount
NumberofPoles 1
Standards ULRecognized/CSACertified/VDEApproved/SEVApproved/SemkoApproved
SwitchType Lineswitch
Temperature,Operating -25to+70°C
TerminalType QuickConnect
Termination QuickConnect
Thickness,Panel 8mm
Version Medical
VoltageRating 125(UL/CSA)/250(IEC)Vac
Voltage,Rating 126VAC(UL/CSA),250VAC(IEC)VAC
