4610X-102-104LF
Res Thick Film NET 100K Ohm 2% 1.25W ±100ppm/°C ISOL Conformal 10-Pin SIP Pin Thru-Hole Bulk
廠商型號:
4610X-102-104LF
芯天下內部編號:
18-4610X-102-104LF
生產廠商:
bourns
描述:
Res Thick Film NET 100K Ohm 2% 1.25W ±100ppm/°C ISOL Conformal 10-Pin SIP Pin Thru-Hole Bulk
產品類別:
Resistor|Resistor Networks and Arrays

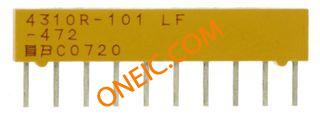

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package Type | SIP |
| Number of Resistors | 5 |
| Number of Terminals | 10 |
| Power Rating | 1.25 W |
| Type | Network |
| Circuit Designator | ISOL |
| Technology | Thick Film |
| Operating Temperature | -55 to 125 °C |
| Resistance Value | 100 KOhm |
| Temperature Coefficient | ±100 ppm/°C |
| Standard Package | Bulk |
| Resistance Value | 100K |
| EU RoHS | Compliant |
| Power Rating per Resistor | 0.3 |
| Product Depth | 2.49 |
| Temperature Coefficient | ±100 |
| Termination Style | Pin |
| Product Length | 25.35 |
| Product Height | 5.08 |
| Packaging | Bulk |
| Power Rating | 1.25 |
| Tolerance | 2% |
| Mounting | Through Hole |
| Case Style | Conformal |
| Terminal Pitch | 2.54 |
| Package/Case | SIP |
| Resistance (Ohms) | 100k |
| Power Per Element | 300mW |
| Mounting Type | Through Hole |
| Circuit Type | Isolated |
| Supplier Device Package | 10-SIP |
| Height | 0.200" (5.08mm) |
| Size / Dimension | 0.998" L x 0.098" W (25.35mm x 2.49mm) |
| Number of Pins | 10 |
| rohs | Lead free / RoHS Compliant |
| Depth | 2.49mm |
| Dimensions | 25.35 x 2.49 x 5.08mm |
| Length | 25.35mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Power Rating per Resistor | 0.3W |
| Resistance | 100kΩ |
| Resistor Values | 100 kOhms |
| Factory Pack Quantity | 100 |
| Product Category | Resistor Networks & Arrays |
| Voltage Rating | 100 V |
| Lead Spacing | 2.54 mm |
| Operating Temperature Range | - 55 C to + 125 C |
| Power per Element | 1.25 W |
| Series | 4600X |
| Product Type | Networks |
| RoHS | RoHS Compliant By Exemption |
| Operating Temp Range | -55C to 125C |
| Terminal Pitch | 2.54 mm |
| Rad Hardened | No |
| No. of Terminals | 10 |
| Failure Rate | Not Required |
| Tolerance (+ or -) | 2% |
| Mounting Style | Through Hole |
| Package / Case | SIP |
| Military Standard | Not Required |
| Product Length (mm) | 25.35 mm |
| Product Depth (mm) | 2.49 mm |
| Product Height (mm) | 5.08 mm |
| Power Rating Per Resistor | 3/10 W |
| Resistance Tolerance | :± 2% |
| Power Rating per Element | :300mW |
| No. of Elements | :5 |
| Resistor Case Style | :SIP |
| MSL | :- |
| Weight (kg) | 0.002 |
| Tariff No. | 85331000 |
| SVHC | :No SVHC (16-Dec-2013) |
| Resistor Mounting | :Through Hole |
| Brand/Series | 4600XSeries |
| Circuit | IsolatedNetwork |
| NumberofTerminals | 10 |
| PackageType | SIP |
| Power,Rating | 1.25W |
| Resistor network type | Y |
| Case | SIP |
| Terminal pitch | 2.54mm |
| Power | 300mW |
| Multiplicity | 1 |
| Resistor characteristics | terminals of all resistors are separated |
| Gross weight | 0.62 g |
| Operating temperature | -55...125°C |
| Number of resistors | 5 |
| spg | 100 |
| Collective package [pcs] | 100 |
| Max operating voltage | 100V |
