廠商型號: 5023820370
芯天下內部編號: 256-5023820370
生產廠商:
Molex Molex
描述: Conn Wire to Board RCP 3 POS 1.25mm Solder ST SMD Embossed T/R
產品類別: ExtendedOffer
客戶編號:
規格書: 查看PDF

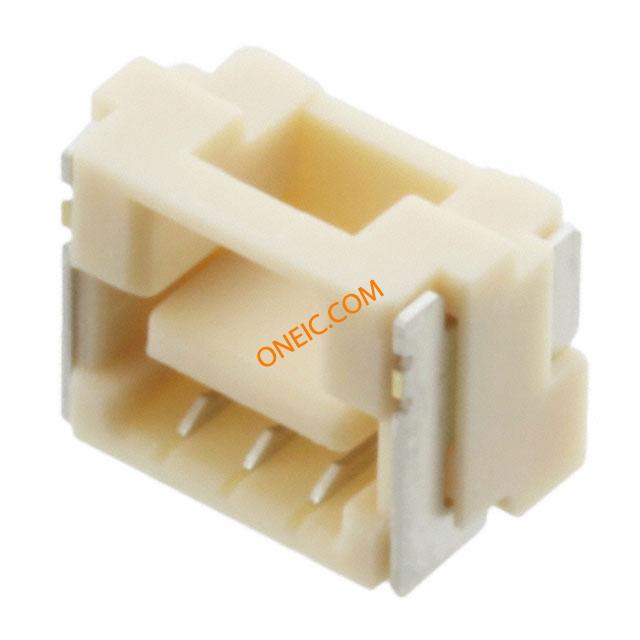

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中,請稍候....

產品參數

參數類型 參數值
Packaging Embossed Tape and Reel
Product Length 7.1
EU RoHS Compliant
Product Depth 5.45
Mounting Surface Mount
Body Orientation Straight
Termination Method Solder
Maximum Voltage Rating 50VDC|50VAC
Product Height 4.55
Housing Material Thermoplastic
Number of Contacts 3
Number of Rows 1
Pitch 1.25
Housing Color Natural
Contact Plating Tin Over Nickel
Gender RCP
Maximum Current Rating 1/Contact
Type Wire to Board
Contact Material Copper Alloy
Features Solder Retention
Mounting Type Surface Mount
Color Natural
Standard Package 1,400
Connector Type Receptacle
Contact Finish Tin
Fastening Type Latch Holder
Pitch 0.049" (1.25mm)
Contact Type Center Strip Contact
Termination Solder
Number of Positions 3
Number of Positions Loaded All
rohs Lead free / RoHS Compliant
Other Names WM3918CT
Electrical mounting SMT
Locking system lock
Maximum current 1A
Multiplicity 1
Contacts pitch 1.25mm
Connector type male
Spatial orientation vertical
Connector socket
Gross weight 0.27 g
Operating temperature -25...85°C
Number of pins 3
Voltage max 50V
Connector series Clik-Mate
spg 20
Collective package [pcs] 20
Type of pin configuration 1x3
