5023820870
Conn Wire to Board RCP 8 POS 1.25mm Solder ST SMD Embossed T/R
廠商型號:
5023820870
芯天下內部編號:
256-5023820870
生產廠商:
Molex
描述:
Conn Wire to Board RCP 8 POS 1.25mm Solder ST SMD Embossed T/R
產品類別:
ExtendedOffer

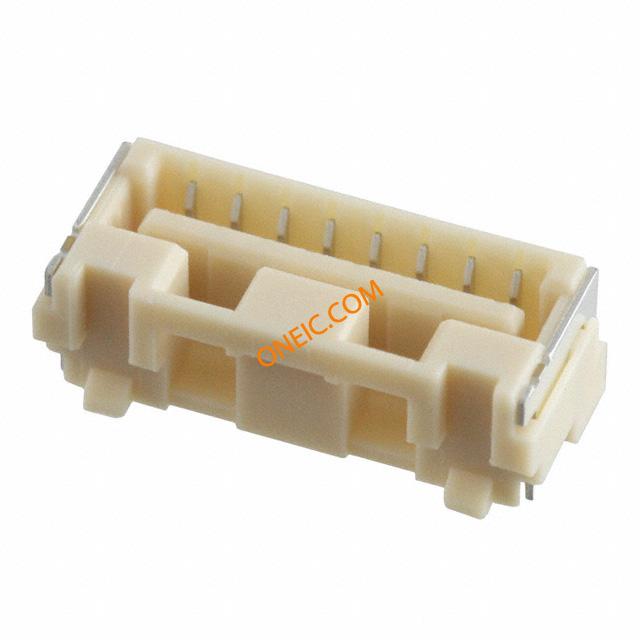

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Embossed Tape and Reel |
| Product Length | 13.35 |
| EU RoHS | Compliant |
| Product Depth | 5.45 |
| Mounting | Surface Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Maximum Voltage Rating | 50VDC|50VAC |
| Product Height | 4.55 |
| Housing Material | Thermoplastic |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Pitch | 1.25 |
| Housing Color | Natural |
| Contact Plating | Tin Over Nickel |
| Gender | RCP |
| Maximum Contact Resistance | 20 |
| Maximum Current Rating | 1/Contact |
| Type | Wire to Board |
| Contact Material | Copper Alloy |
| Features | Solder Retention |
| Mounting Type | Surface Mount |
| Color | Natural |
| Standard Package | 1,400 |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Fastening Type | Latch Holder |
| Pitch | 0.049" (1.25mm) |
| Contact Type | Center Strip Contact |
| Termination | Solder |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| rohs | Lead free / RoHS Compliant |
| Other Names | WM4785CT |
| 連接器類型 | Receptacle |
| 間距 | 0.049" (1.25mm) |
| 排數 | 1 |
| 位置數 | 8 |
| 端接 | Solder |
| 加載的針腳數 | All |
| 特性 | Solder Retention |
| 緊固類型 | Latch Holder |
| 觸頭鍍層 | Tin |
| 裝配類型 | Surface Mount |
| 接觸點類型 | Center Strip Contact |
| 系列 | CLIK-Mate? 502382 |
