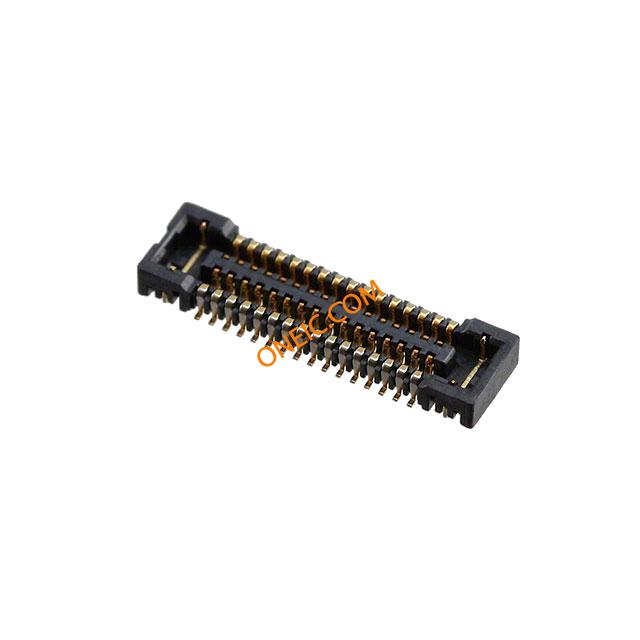

5024263210
Conn Board to Board RCP 32 POS 0.4mm Solder ST SMD Embossed T/R
廠商型號:
5024263210
芯天下內部編號:
256-5024263210
生產廠商:
Molex
描述:
Conn Board to Board RCP 32 POS 0.4mm Solder ST SMD Embossed T/R
產品類別:
ExtendedOffer
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Embossed Tape and Reel |
| Product Length | 9.5 |
| EU RoHS | Compliant |
| Product Depth | 2.6 |
| Mounting | Surface Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Maximum Voltage Rating | 50VDC|50VAC |
| Product Height | 1 |
| Housing Material | Liquid Crystal Polymer |
| Number of Contacts | 32 |
| Number of Rows | 2 |
| Pitch | 0.4 |
| Housing Color | Black |
| Contact Plating | Gold |
| Gender | RCP |
| Maximum Current Rating | 0.3/Contact |
| Type | Board to Board |
| Contact Material | Phosphor Bronze |
| Number of Positions | 32 |
| Features | Solder Retention |
| Mounting Type | Surface Mount |
| Pitch | 0.016" (0.40mm) |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.039" (1.00mm) |
| Mated Stacking Heights | 1mm |
| Standard Package | 3,000 |
| Contact Finish Thickness | 3.9μin (0.10μm) |
| Other Names | WM24072TR |
| rohs | Lead free / RoHS Compliant |
