9081C-05-10
Reed Relays 1 FORM C 5V MAG SH
廠商型號:
9081C-05-10
芯天下內部編號:
81-9081C-05-10
生產廠商:
Coto Technology
描述:
Reed Relays 1 FORM C 5V MAG SH
產品類別:
Electromechanical|Relays|Reed Relays

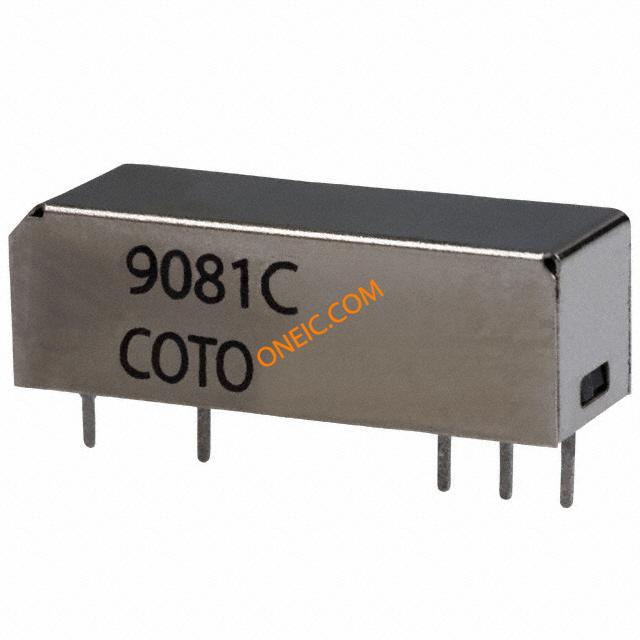

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Reed Relays |
| RoHS | RoHS Compliant |
| Contact Form | 1 Form A (SPST-NO) |
| Coil Voltage | 5 VDC |
| Maximum Switched Power | 5 W |
| Maximum Switched Current | 0.4 A |
| Coil Suppression Diode | No |
| Coil Resistance | 125 Ohms |
| Contact Material | Ruthenium |
| Form Factor, or Case Style | SIP |
| Series | 9000 Spartan |
| Life | Obsolete |
| Coil Current | 40mA |
| Turn On Voltage (Max) | 3.75 VDC |
| Features | Magnetic Shield |
| Coil Type | Non Latching |
| Turn Off Voltage (Min) | 0.4 VDC |
| Relay Type | Reed |
| Termination Style | PC Pin |
| Switching Voltage | 175VAC, 175VDC - Max |
| Release Time | 1.5ms |
| Packaging | Bulk |
| Operating Temperature | -20°C ~ 85°C |
| Operate Time | 1ms |
| Contact Rating (Current) | 400mA |
| Standard Package | 18 |
| Mounting Type | Through Hole |
| Other Names | 306-1176 |
| rohs | Lead free / RoHS Compliant |
| SubCategory | Reed Relay |
| Mounting | PC Board |
| Switching Current | 0.4 Amps |
| Control Off Voltage (Min) | 0.4 VDC |
| Contact Configuration | 1C SPDT |
| MainCategory | Relays |
| Contact Rating @ Voltage | 0.4A @ 175 VAC/DC |
| Control On Voltage (Max) | 3.75 VDC |
