B78108S1102K9
RF Choke Bobbin Core 1uH 10% 1MHz 55Q-Factor Ferrite 1.2A 160mOhm DCR AXL Ammo Pack
廠商型號:
B78108S1102K9
芯天下內部編號:
125-B78108S1102K9
生產廠商:
EPCOS
描述:
RF Choke Bobbin Core 1uH 10% 1MHz 55Q-Factor Ferrite 1.2A 160mOhm DCR AXL Ammo Pack
產品類別:
Inductors, Coils, Chokes|Fixed Inductors|BC

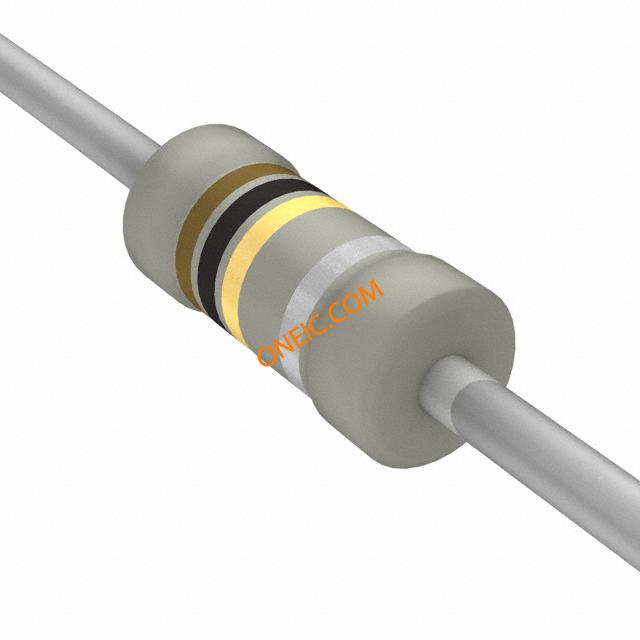

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Maximum DC Resistance | 160m |
| Product Length | 11.5 |
| EU RoHS | Compliant |
| Minimum Self Resonant Frequency | 205M |
| Maximum DC Current | 1.2 |
| Lead Style | Axial |
| Product Diameter | 4 |
| Tolerance | 10% |
| Packaging | Ammo Pack |
| Inductance | 1u |
| Core Material | Ferrite |
| Minimum Quality Factor | 55@7.96MHz |
| Test Frequency | 1M |
| Type | RF Choke |
| Technology | Bobbin Core |
| Current Rating | 1.2A |
| DC Resistance (DCR) | 160 mOhm Max |
| Standard Package | 5,000 |
| Material - Core | Ferrite |
| Frequency - Self Resonant | 205MHz |
| Shielding | Unshielded |
| Supplier Device Package | Axial |
| Size / Dimension | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) |
| Q @ Freq | 55 @ 7.96MHz |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Frequency - Test | 7.96MHz |
| rohs | Lead free / RoHS Compliant |
