B78108S1103K
Fixed Inductors 10uH 680mA 0.49ohms
廠商型號:
B78108S1103K
芯天下內部編號:
125-B78108S1103K
生產廠商:
EPCOS
描述:
Fixed Inductors 10uH 680mA 0.49ohms
產品類別:
Inductors, Coils, Chokes|Fixed Inductors|BC

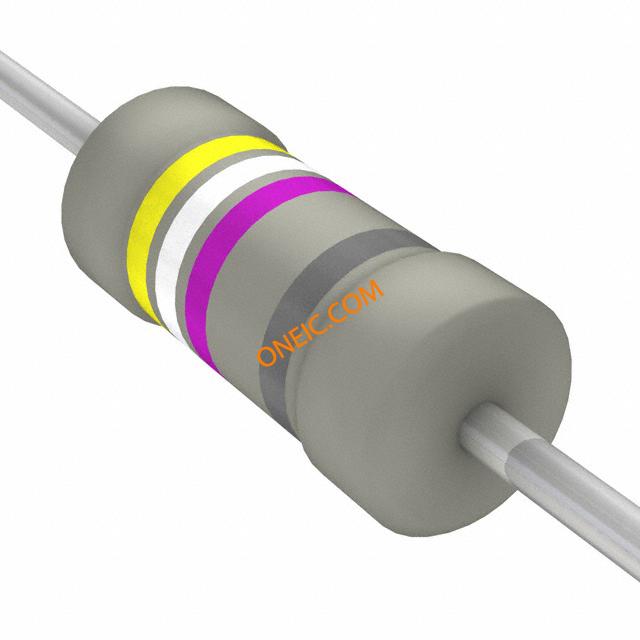

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Maximum DC Resistance | 490m |
| Product Length | 11.5 |
| EU RoHS | Compliant |
| Minimum Self Resonant Frequency | 35M |
| Maximum DC Current | 680m |
| Lead Style | Axial |
| Product Diameter | 4 |
| Tolerance | 10% |
| Packaging | Tape and Reel |
| Inductance | 10u |
| Core Material | Ferrite |
| Minimum Quality Factor | 70@2.52MHz |
| Test Frequency | 1M |
| Type | RF Choke |
| Technology | Bobbin Core |
| Current Rating | 680mA |
| DC Resistance (DCR) | 490 mOhm Max |
| Standard Package | 5,000 |
| Material - Core | Ferrite |
| Frequency - Self Resonant | 35MHz |
| Shielding | Unshielded |
| Supplier Device Package | Axial |
| Size / Dimension | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) |
| Mounting Type | Through Hole |
| Q @ Freq | 70 @ 2.52MHz |
| Frequency - Test | 2.52MHz |
| Package/Case | Axial |
| rohs | Lead free / RoHS Compliant |
| Other Names | 495-5548-1 |
| Diameter | 4mm |
| Dimensions | 4 Dia. x 11.5mm |
| Length | 11.5mm |
| Maximum DC Current | 680mA |
| Maximum DC Resistance | 490mΩ |
| Maximum Self Resonant Frequency | 35MHz |
| Q Minimum | 70 |
| Product Category | Fixed Inductors |
| Factory Pack Quantity | 5000 |
| Termination Style | Axial |
| Self Resonant Frequency | 35 MHz |
| Part # Aliases | B78108S1103K000 |
| RoHS | RoHS Compliant |
| Product Range | :EPCOS - B78108S BC Series |
| Inductance Tolerance | :± 10% |
| DC Resistance Max | :0.49ohm |
| DC Current Rating | :680mA |
| Self Resonant Frequency Min | :35MHz |
| Case Dimensions | :4mm x 9.2mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Inductance Measurement Frequency | :0.1MHz |
| Weight (kg) | 0.0004 |
| Tariff No. | 85045020 |
| Package / Case | Axial |
